R7 296,06Login for your trade price excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · 1 available · ships from Johannesburg
Material
Galvanised steel
Product type
Rod clevis AP2
Series
Parker P1C / P1F cylinder mountings

Overview

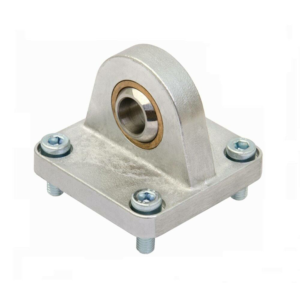

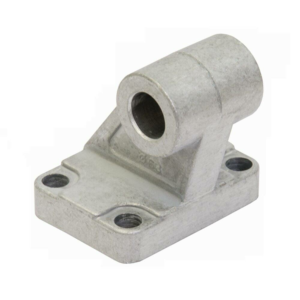

Parker P1C Cylinder Mountings are the accessory mounting brackets for Parker's ISO 15552, ISO 21287 and ISO 6431 cylinder ranges. The range includes Flange MF1/MF2, Foot brackets MS1, Pivot brackets with rigid bearing AB7, Swivel eye brackets MP6, Clevis brackets MP2/MP4/AB6, Pivot brackets with swivel bearing CS7, 3/4-position flange JP1 and Pivot brackets AT4. All brackets are sized for cylinder bores from Ø32 to Ø125 mm.

Applications:
- Cylinder pivot and rigid mounting
- ISO-standard cylinder accessory mounting
- Cylinder rod-end articulation

Features/Benefits:
- ISO 15552 / 21287 / 6431 compatible
- Bore sizes Ø32 — Ø125 mm
- Multiple mounting styles (flange, foot, pivot, clevis, swivel)

Source: appliedgroup.co.za ↗

Specifications

Product type Rod clevis AP2
Series Parker P1C / P1F cylinder mountings
For cylinder bore 250 mm
Compatible cylinder standards ISO 15552
Material Galvanised steel
Pressure rating Not applicable — the assembly is rated by the cylinder
Catalogue reference PDE2667TCEN, p.11, 12, 13, 14, 15, 16
