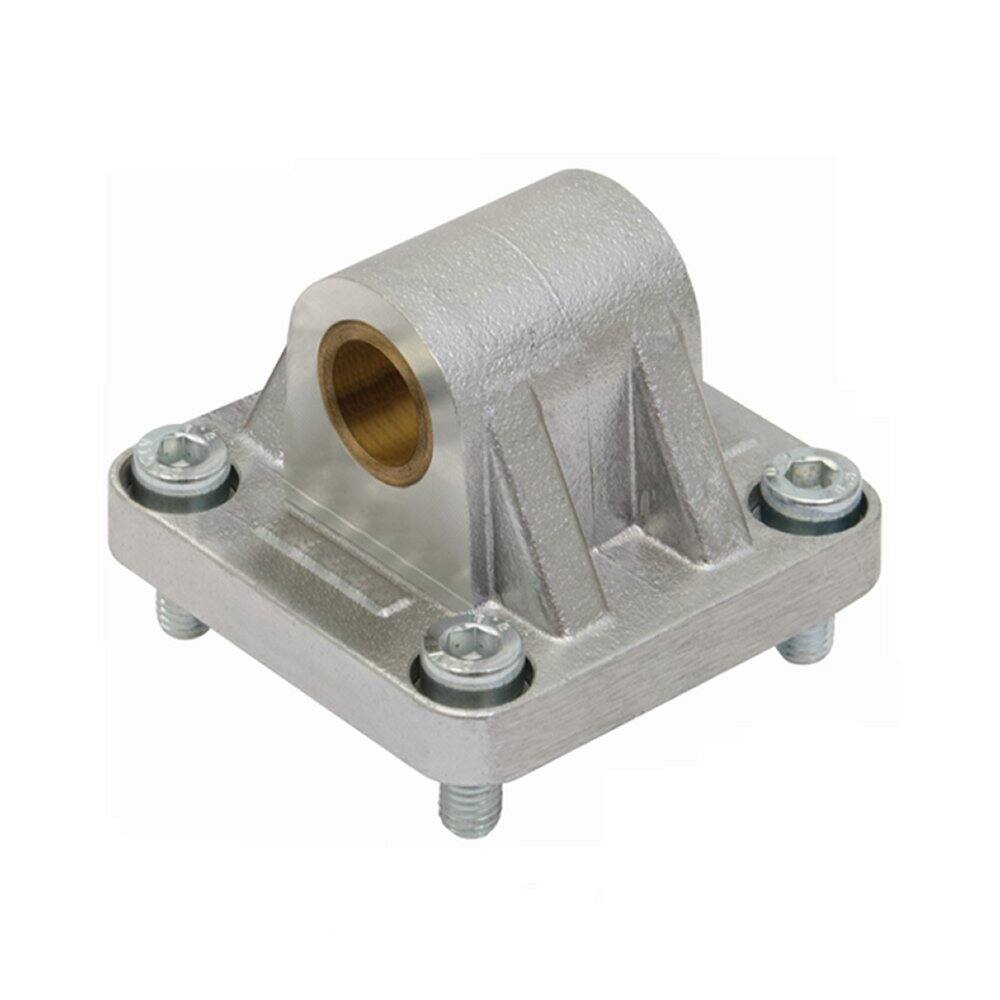

Parker ISO 15552 Clevis Bracket MP4 200mm
Overview
Parker P1C Cylinder Mountings are the accessory mounting brackets for Parker's ISO 15552, ISO 21287 and ISO 6431 cylinder ranges. The range includes Flange MF1/MF2, Foot brackets MS1, Pivot brackets with rigid bearing AB7, Swivel eye brackets MP6, Clevis brackets MP2/MP4/AB6, Pivot brackets with swivel bearing CS7, 3/4-position flange JP1 and Pivot brackets AT4. All brackets are sized for cylinder bores from Ø32 to Ø125 mm.
Applications:
- Cylinder pivot and rigid mounting
- ISO-standard cylinder accessory mounting
- Cylinder rod-end articulation
Features/Benefits:
- ISO 15552 / 21287 / 6431 compatible
- Bore sizes Ø32 — Ø125 mm
- Multiple mounting styles (flange, foot, pivot, clevis, swivel)
Specifications
| Type | Cylinder mounting bracket |
|---|---|
| Series | Parker P1C Mountings |
| Compatible cylinder standards | ISO 15552, ISO 21287, ISO 6431 |
| Catalog code | P1C-4TMEB |
| Catalog reference | PNDE3800DSUK page 4 |
| Material (detail) | Galvanised / Painted steel (typical) |
| Catalogue reference | PDE2667TCEN, p.11, 12, 13, 14, 15, 16 |
