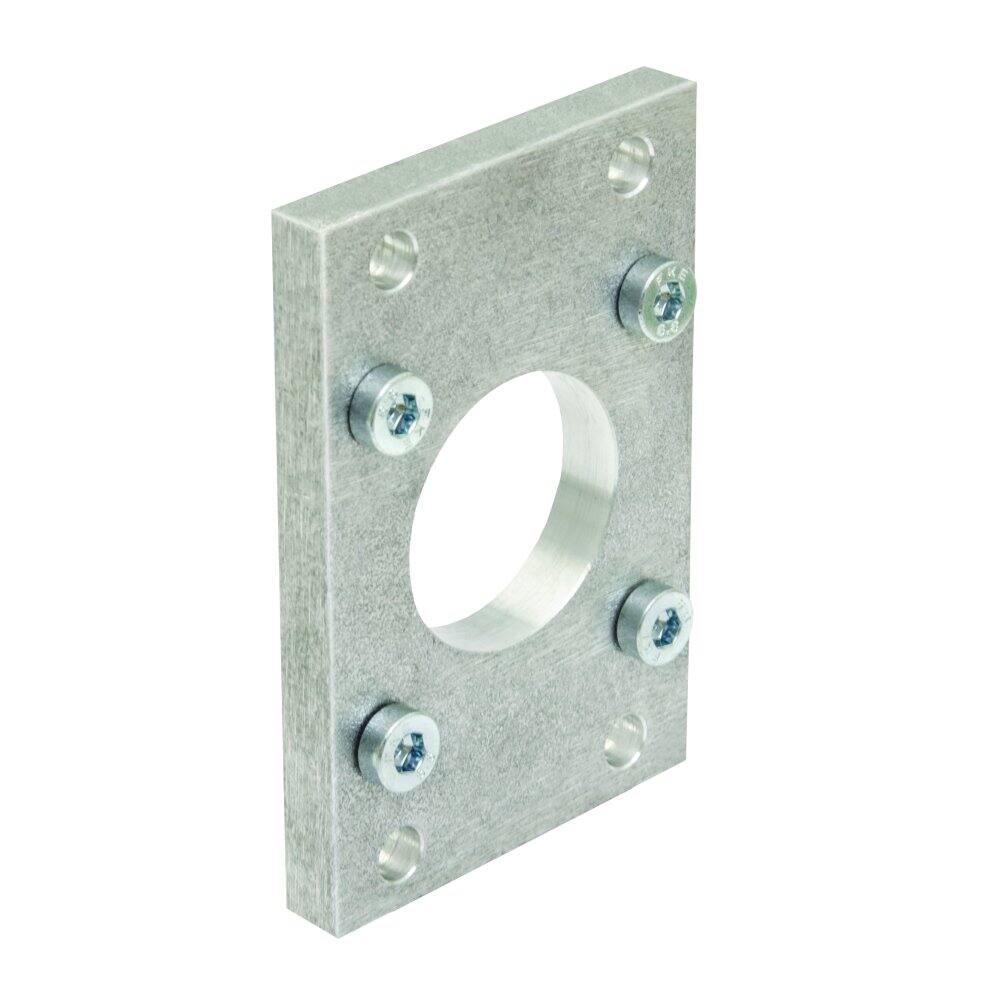

Parker ISO 15552 Front Flange MF1/MF2 160mm
Overview
Parker P1C Cylinder Mountings are the accessory mounting brackets for Parker's ISO 15552, ISO 21287 and ISO 6431 cylinder ranges. The range includes Flange MF1/MF2, Foot brackets MS1, Pivot brackets with rigid bearing AB7, Swivel eye brackets MP6, Clevis brackets MP2/MP4/AB6, Pivot brackets with swivel bearing CS7, 3/4-position flange JP1 and Pivot brackets AT4. All brackets are sized for cylinder bores from Ø32 to Ø125 mm.
Applications:
- Cylinder pivot and rigid mounting
- ISO-standard cylinder accessory mounting
- Cylinder rod-end articulation
Features/Benefits:
- ISO 15552 / 21287 / 6431 compatible
- Bore sizes Ø32 — Ø125 mm
- Multiple mounting styles (flange, foot, pivot, clevis, swivel)
Specifications
| Type | Cylinder mounting bracket |
|---|---|
| Series | Parker P1C Mountings |
| Compatible cylinder standards | ISO 15552, ISO 21287, ISO 6431 |
| Catalog code | P1C-4SMB |
| Catalog reference | PNDE3800DSUK page 4 |
| Material (detail) | Galvanised / Painted steel (typical) |
| Catalogue reference | PDE2667TCEN, p.11, 12, 13, 14, 15, 16 |
