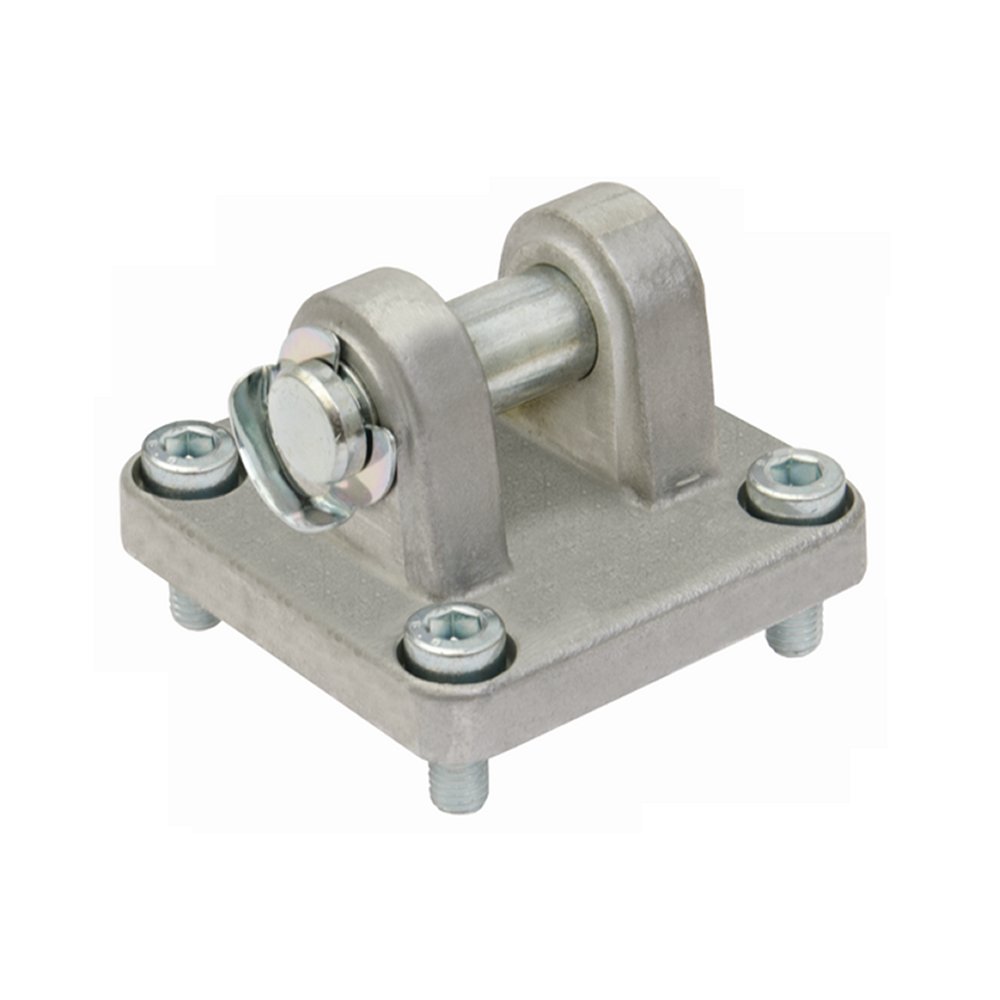

Parker ISO 15552, ISO 21287 Clevis Bracket AB6 80mm
Parker Clevis for ISO 15552 cylinders, Ø80 mm.
Overview
Parker ISO 15552, ISO 21287 Clevis Bracket AB6 80mm (part number P1C-4PMCB) is a Parker clevis for ISO 15552 pneumatic cylinders of 80 mm bore. It connects the piston rod to the load through a pinned clevis.
Dimensions follow ISO 15552, ISO 21287, so it fits Parker P1F cylinders and any other maker's cylinder built to the same standard and bore. Order to match the cylinder bore; pins and fixings are included where the catalogue lists them.
Genuine Parker product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions are in the attached catalogue extract.
Specifications
| Product type | Clevis |
|---|---|
| Series | Parker P1C / P1F cylinder mountings |
| For cylinder bore | 80 mm |
| Compatible cylinder standards | ISO 15552, ISO 21287 |
| Pressure rating | Not applicable — the assembly is rated by the cylinder |
| Catalogue reference | Parker Pneumatic Concise Catalogue PNDE3800DSUK, p.4, 5 |
