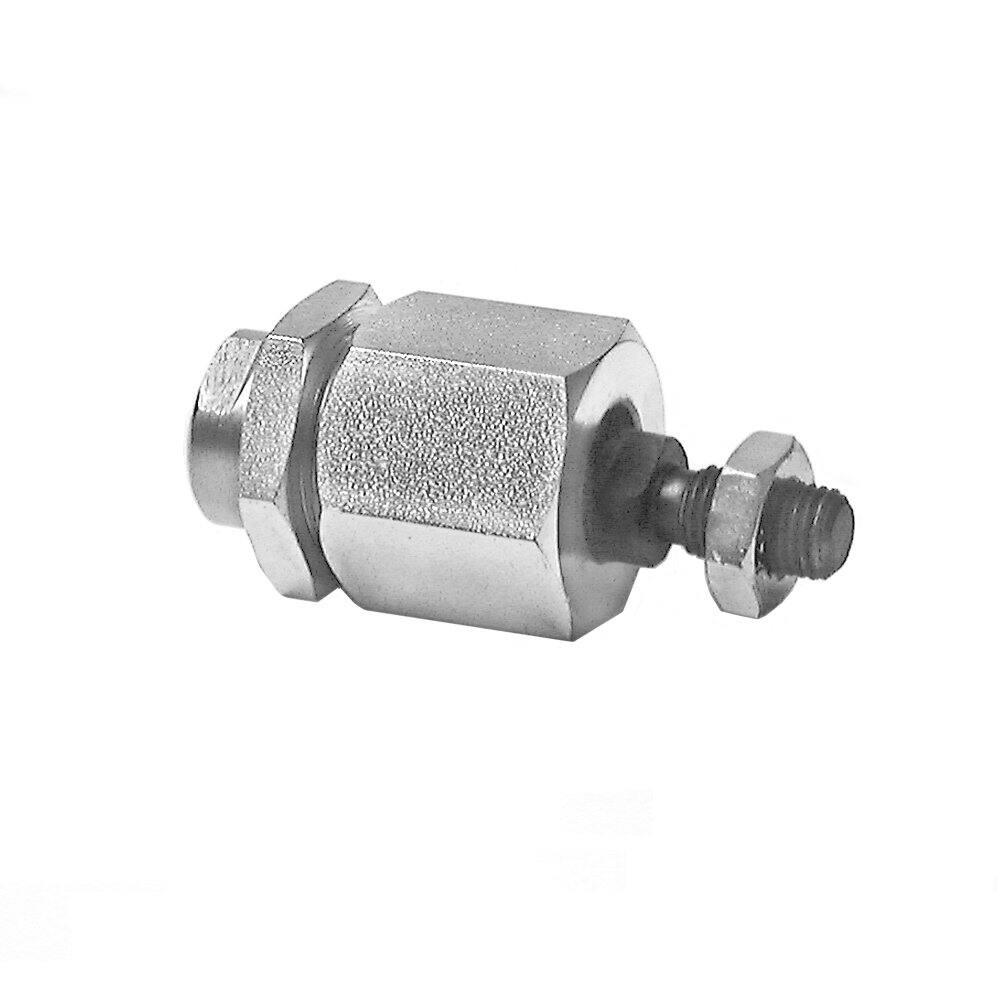

Parker ISO 15552, ISO 21287 Flexo Coupling PM5 80mm and 100mm
Parker Flexo coupling PM5 for ISO 15552 cylinders, Ø80 mm and 100 mm.
Overview
Parker ISO 15552, ISO 21287 Flexo Coupling PM5 80mm and 100mm (part number P1C-4PRF) is a Parker flexo coupling PM5 for ISO 15552 pneumatic cylinders of 80 mm and 100 mm bore. It connects the piston rod to the load while tolerating slight misalignment.
Dimensions follow ISO 15552, ISO 21287, so it fits Parker P1F cylinders and any other maker's cylinder built to the same standard and bore. Order to match the cylinder bore; pins and fixings are included where the catalogue lists them.
Genuine Parker product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions are in the attached catalogue extract.
Specifications
| Product type | Flexo coupling PM5 |
|---|---|
| Series | Parker P1C / P1F cylinder mountings |
| For cylinder bore | 80 mm and 100 mm |
| Compatible cylinder standards | ISO 15552, ISO 21287 |
| Pressure rating | Not applicable — the assembly is rated by the cylinder |
| Catalogue reference | Parker Pneumatic Concise Catalogue PNDE3800DSUK, p.4 |
