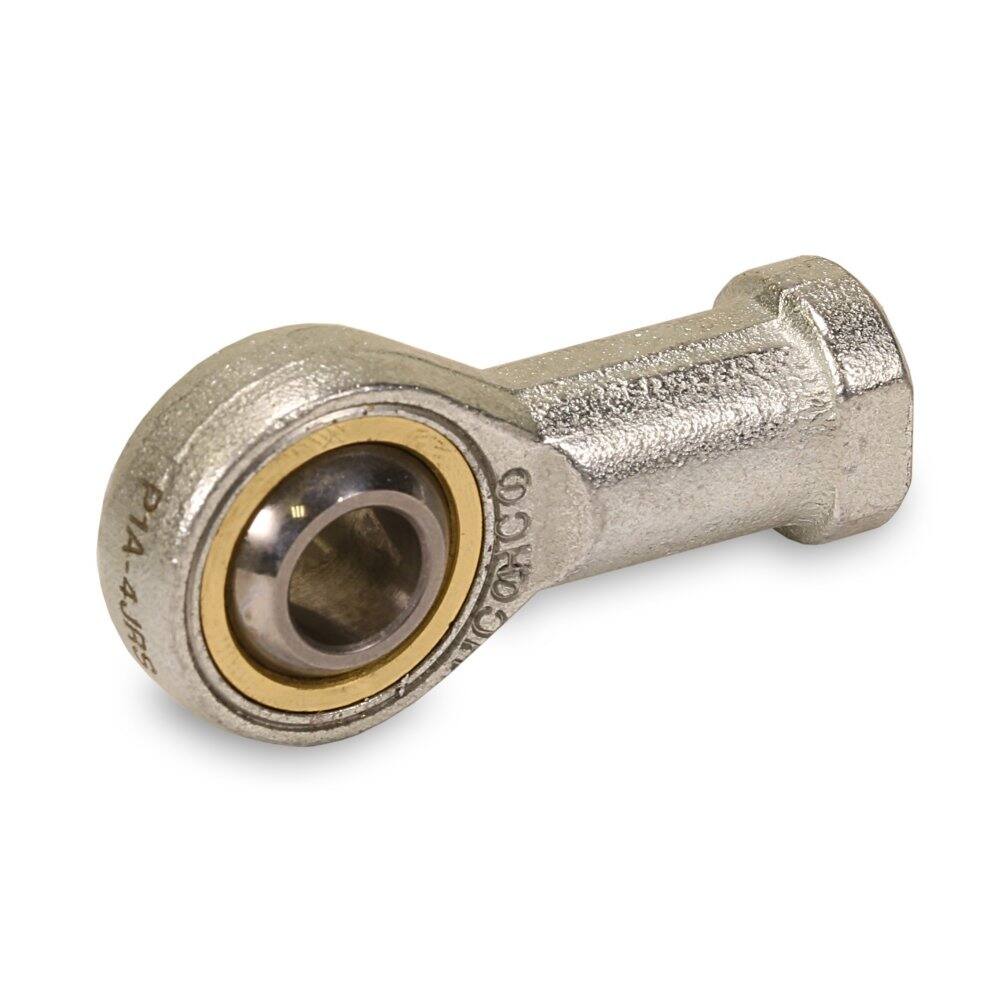

Parker ISO 15552 Swivel Rod Eye AP6 Galv Steel 250mm
Parker Swivel rod eye AP6 for ISO 15552 cylinders, Ø250 mm.
Overview
Parker ISO 15552 Swivel Rod Eye AP6 Galv Steel 250mm (part number P1C-4VRS) is a Parker swivel rod eye AP6 for ISO 15552 pneumatic cylinders of 250 mm bore. It connects the piston rod to the load through a self-aligning spherical bearing.
Dimensions follow ISO 15552, so it fits Parker P1F cylinders and any other maker's cylinder built to the same standard and bore. Order to match the cylinder bore; pins and fixings are included where the catalogue lists them.
Genuine Parker product supplied by Applied Group, authorised Parker distributor in South Africa. Dimensions are in the attached catalogue extract.
Specifications
| Product type | Swivel rod eye AP6 |
|---|---|
| Series | Parker P1C / P1F cylinder mountings |
| For cylinder bore | 250 mm |
| Compatible cylinder standards | ISO 15552 |
| Material | Galvanised steel |
| Pressure rating | Not applicable — the assembly is rated by the cylinder |
| Catalogue reference | PDE2667TCEN, p.11, 12, 13, 14, 15, 16 |
