Parker Hannifin Genuine

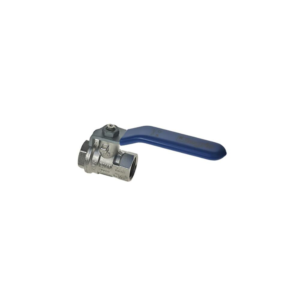

Parker Legris 2/2 Standard Series In-Line Ball Valve 1"Bspp Female
R227,52Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 25 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
4 MPa, 40 bar
Body Material
Nickel-Plated Brass
Temperature Range
-20°C to +170°C
Overview
Parker Legris 2/2 Standard Series In-Line Ball Valve 1"Bspp Female
Specifications
| Function | 2-Way |
|---|---|
| Connection Size | G1 |
| Connection Type | BSPP |
| Maximum Operating Pressure | 4 MPa, 40 bar |
| Temperature Range | -20°C to +170°C |
| Body Material | Nickel-Plated Brass |
| Seal Material | PTFE |
| Flow Rate | n/a |
| Weight | 0.468 kg |
| For Fluid Type | All Fluids Compatible with the Component Materials, Gases, Water Vapour, Water, Oil |
| Product Series | Standard Series |
| Product Type | Ball Valves |
| Region of Origin | Italy |
| Quantity per Box | 10 |
| Handle | Lever, treated steel |
| O-Ring Material | PTFE |
| Stem Seal Material | FPM |
| Connection 1 Thread Size (metric) | G1 |
| Diameter Nominal (DN) | 25 |
| Stem Material | Nickel Plated Brass |
| Ball Seal Material | PTFE |
| Shape | Inline |
| Handle Type | Long Lever (Treated Steel), Blue |
| Configuration | 2/2 |
| Mounting Type | Inline |
| Specifications Met | RoHS, REACH, DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive) |
| Seat Material | PTFE |
| Ball Material | Nickel-Plated Brass |
| Application | Agricultural Machinery, Air Conditioning, Process Control, Safety, Fluid Control, Heating, Textile, Plumbing, Pneumatics |
| Operating Pressure | 0 to 40 bar, 0 to 4 MPa |
| Orifice Size | 25 mm |
| Maximum Flow Rate | n/a |
| Actuation Type | Manual |
