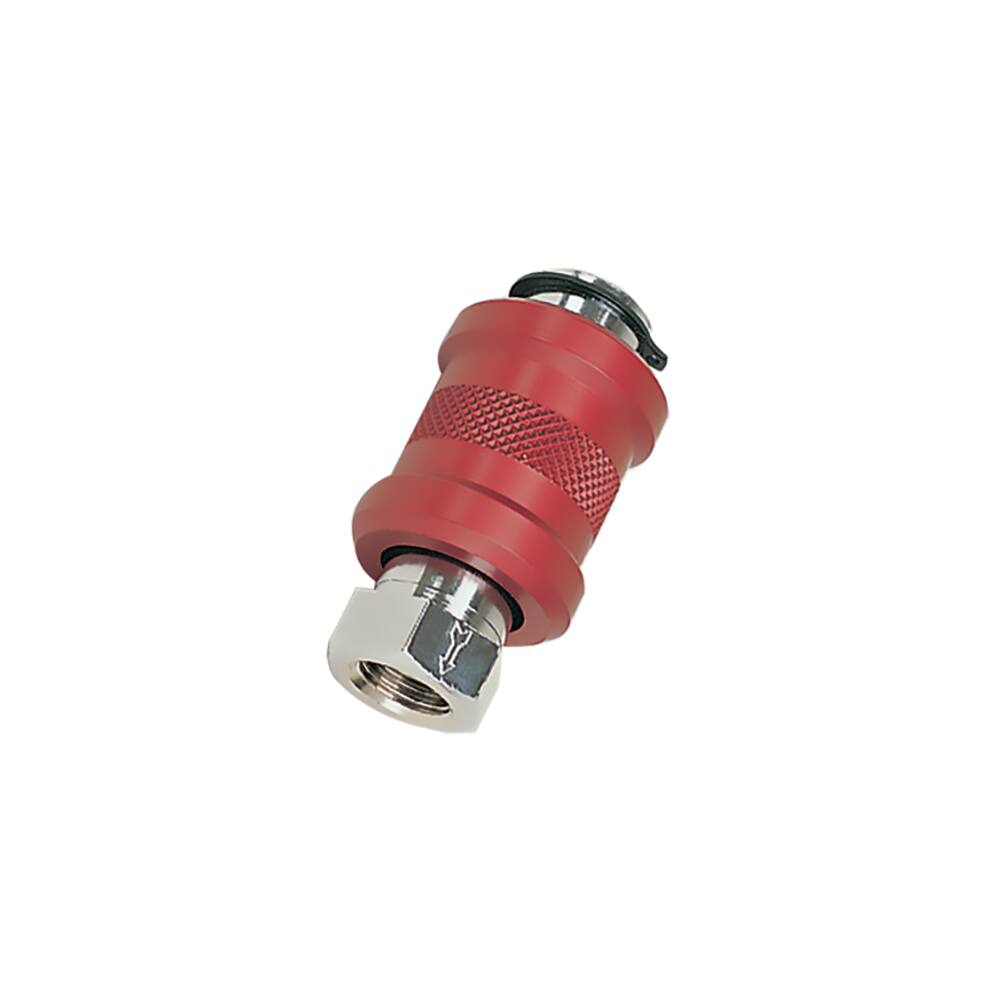

Parker Legris 3/2 Sleeve Valve 1/4"Bspp Female
Overview
06690713 - Parker Legris 3/2 Sleeve Valve 1/4"Bspp Female
Manually-operated valves offer a reliable and durable system for opening and closing the circuit when the system has to be switched frequently. They provide a significant reduction in the time needed to work on pneumatic circuits. Our Parker Legris, uni-directional, switch and sleeve valves, are available in 2/2 and 3/2 versions with polymer and nickel-plated brass bodies, NBR Seal, 360° rotation.
Features/Benefits:
- Valves with Sliding Sleeve
• Uni-directional use ensures the downstream circuit is vented
• Operated in the plane of the tube
• Lightweight due to the use of aluminium
• Ideal for complex installations in a restricted space
• Immediate identification of the venting system by the colour (red)
Product Types:
3/2 Sleeve Valve, Female BSPP and Metric Thread
Markets:
• Factory Automation
• Wearing Apparel
• Semiconductor
• Packaging
Application:
• Pneumatic Circuits Repeated Venting
Technical Characteristics:
• Fluids: Compressed air
• Materials: nickel-plated brass, technical polymer, NBR, silicone free
Model 0669: 0 to 16 bar
Model 0669: -5°C to +70°C
Regulations:
• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)
• DI: 97/23/EC (PED)
Specifications
| Maximum Operating Pressure | 16 barg |
|---|---|
| Temperature Range | -10°C to +80°C |
| Body Material | NICKEL PLATED BRASS |
| Weight | 0.095 kg |
| Quantity per Box | 1 |
| Connection 1 Thread Size (metric) | G1/4 |
| Connection 1 Thread Style | BSPP |
| Diameter Nominal (DN) | 7 |
| Shape | 3/2 sleeve valve female |
| Application | Conveyors, Plastics Engineering, Textile, Printing, Packaging, Pneumatics, Robotics |
| O-Ring Material | NBR |
| Vacuum Pressure Rating | na |
| Media | Compressed air |
| Specifications Met | DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED) |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.91 |
