Parker Hannifin Genuine

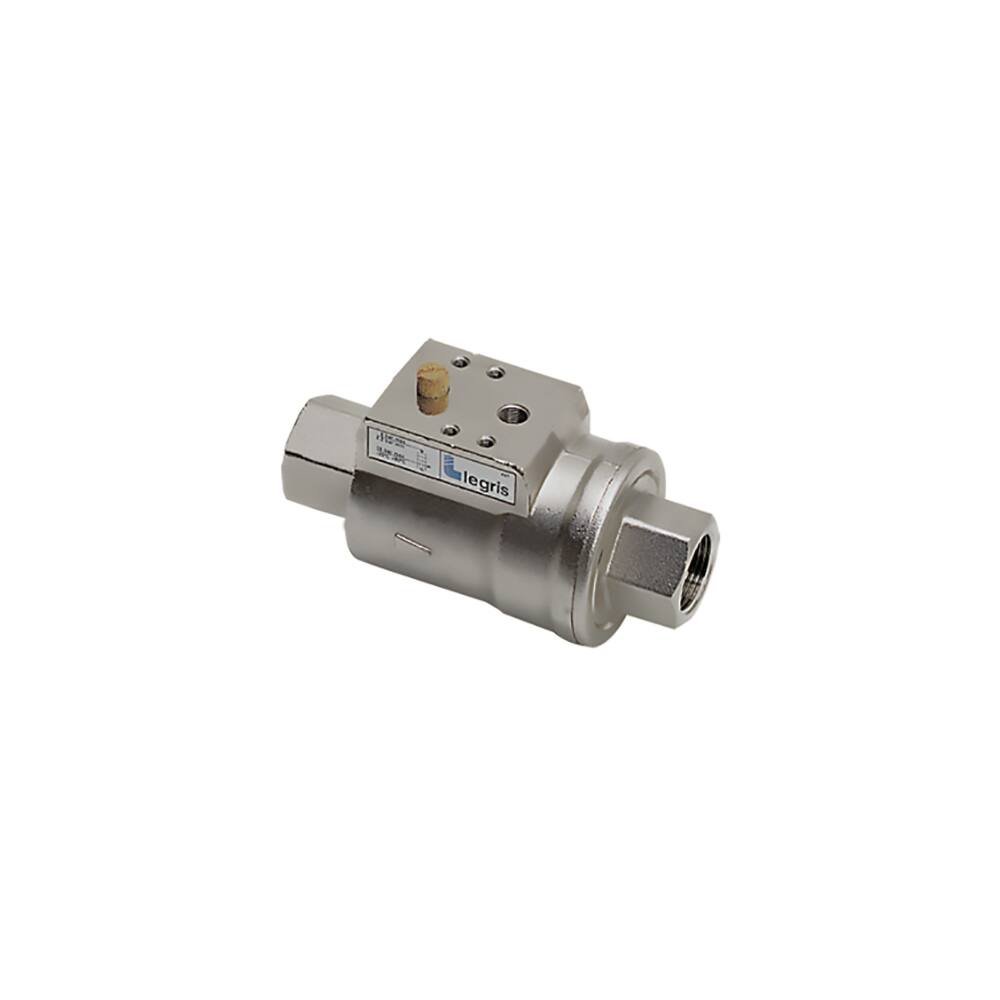

Parker Legris Axial Valve Electro-Pneumatic N/C EPDM 3/8"Bspp Female
R3730,76Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar, 1 MPa
Body Material
Nickel-Plated Brass
Temperature Range
-20°C to +150°C
Overview
Parker Legris Axial Valve Electro-Pneumatic N/C EPDM 3/8"Bspp Female
Specifications
| Function | 2-Way Normally Closed (NC), Normally Closed (NC) |
|---|---|
| Connection Size | Rp 3/8 |
| Connection Type | BSPP |
| Maximum Operating Pressure | 10 bar, 1 MPa |
| Temperature Range | -20°C to +150°C |
| Body Material | Nickel-Plated Brass |
| Seal Material | EPDM |
| Weight | 0.650 kg |
| For Fluid Type | Oil, Compressed Air, Water |
| Product Type | Axial Valves |
| Region of Origin | Italy |
| Quantity per Box | 1 |
| Life Cycle | Active |
| Switch Option | Without detection |
| Connection 1 Thread Size (metric) | Rp 3/8 |
| Shape | Inline |
| Application | Fluid Control, Packaging, Textile, Rubber Industry, Lubrication Circuits, Printing, Plastic Injection Molding, Safety, Robotics, Process Control |
| Specifications Met | DI: 97/23/EC (module PED A - diameters greater than 25 mm), RG: 1907/2006 (REACH), REACH DI: 2006/42/EC (Machinery Directive), DI: 94/9/EC (ATEX) - for Pneumatic Operation Versions, DI: 2014/68/EU (module PED A - diameters equal or greater than 32 mm), DI: 2002/95/EC (RoHS) |
| Port Connection | G 1/8 |
| Actuation Type | Air Pilot |
| Mounting Type | Inline |
| Port Type | Thread |
| Maximum Flow Rate | 2.6 Kv in m3/h |
| Orifice Size | 10 mm (NOM) |
| Number of Ports | 2 |
| Electrical Connection | n/a |
| O-Ring Material | EPDM |
| Minimum Pilot Pressure | 4.2 bar |
| Configuration | 2/2 |
| Maximum Pilot Pressure | 8 bar |
| Vacuum Pressure Rating | 97 % |
Documents
Compliance · Certifications · Safety
Certificate of conformity - REACH_Statement
Certificate of conformity - RoHS LPCE
Certificate of conformity - Mineral Conflict Statement_connectic
Certificate of conformity - 2014 68 EU_connectic
Demos & Tutorials
Parker Legris--Product Tutorial: Axial Valves Piloted by Fittings
Parker Legris--Product Tutorial: Axial Valves Working Principles
Parker Legris--Product Tutorial: Axial Valves with Detection Piloted by Spool Valves
Parker Legris--Product Tutorial: Axial Valves with Detection Working Principles
Parker Legris--Product Tutorial: Axial Valves with Detection Piloted by Solenoid Valves
