US$74.58Login for your trade price excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 45 days
Maximum Operating Pressure
10 barg
Body Material
TREATED ALUMINIUM
Temperature Range
-10°C to +70°C

Overview

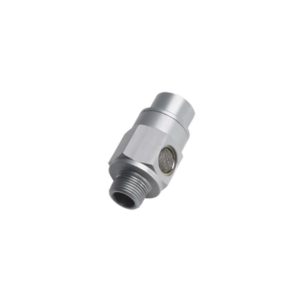

79712121 – Parker Legris Elbow Quick Exhaust Valve 1/2"Bspt Male - 1/2"Bspp Female

This range of metal quick exhaust valves is offered in nickel-plated brass, aluminium and stainless steel.

These valves, which are suitable for any environment, increase the return speed of the cylinder rod by allowing the exhaust to pass directly to atmosphere.

Features/Benefits:

– Time Saving & Compact

• Reduction in cycle times: return speed improved
• Dimensions optimised for space reduction
• Exhaust silencer incorporated on some models
• Excellent exhaust capacity
• Robust

– Nickel-Plated Brass or Stainless Steel

• Ideal for applications in restrictive environments
• Orientation as required
• Many installation options and choice of silencer
• Designed without retention areas to optimise frequent cleaning operations (stainless steel)

– Aluminium

• Protection of individuals through low noise emissions
• Lightweight and robust
• Silencer integrated for greater compactness

Markets:

• Factory Automation
• Wearing Apparel
• Semiconductor
• Packaging

Application:

• Increases the Return Speed of Pneumatic Cylinders

Product Types:

• Elbow Quick Exhaust Valve, Female BSPP and Metric Thread
• Elbow Quick Exhaust Valve, Male BSPT/Female BSPP Thread
• Quick Exhaust Valve, Female BSPP Thread

Technical Characteristics:

• Fluids: Compressed air
• Materials: nickel-plated brass, anodised aluminium, stainless steel, polyurethane elastomer, FKM, polyurethane, silicone free
• Pressure:
Model 7970: 0.7 to 10 bar
Models 7971 and 7899: 2 to 10 bar
• Temperature:
Model 7970: -20°C to +70°C
Model 7971: -10°C to +70°C
Model 7899: -10°C to +180°C

Regulations:

• DI: 2002/95/EC (RoHS)
• RG: 1907/2006 (REACH)
• DI: 97/23/EC (PED)

Technologies:

• Function fitting
• Quick exhaust valve
• Pneumatic systems

Source: www.parker.com ↗

Specifications

Maximum Operating Pressure 10 barg
Temperature Range -10°C to +70°C
Body Material TREATED ALUMINIUM
Weight 0.086 kg
Quantity per Box 1
Connection 1 Thread Size (metric) G1/2
Connection 1 Thread Style BSPP
Diameter Nominal (DN) na
Shape Straight metal quick exhaust valve female
Application Robotics, Conveyors, Textile, Plastics Engineering, Printing, Pneumatics, Packaging
Media Compressed air
Specifications Met DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED)
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.83
