Parker Hannifin Genuine

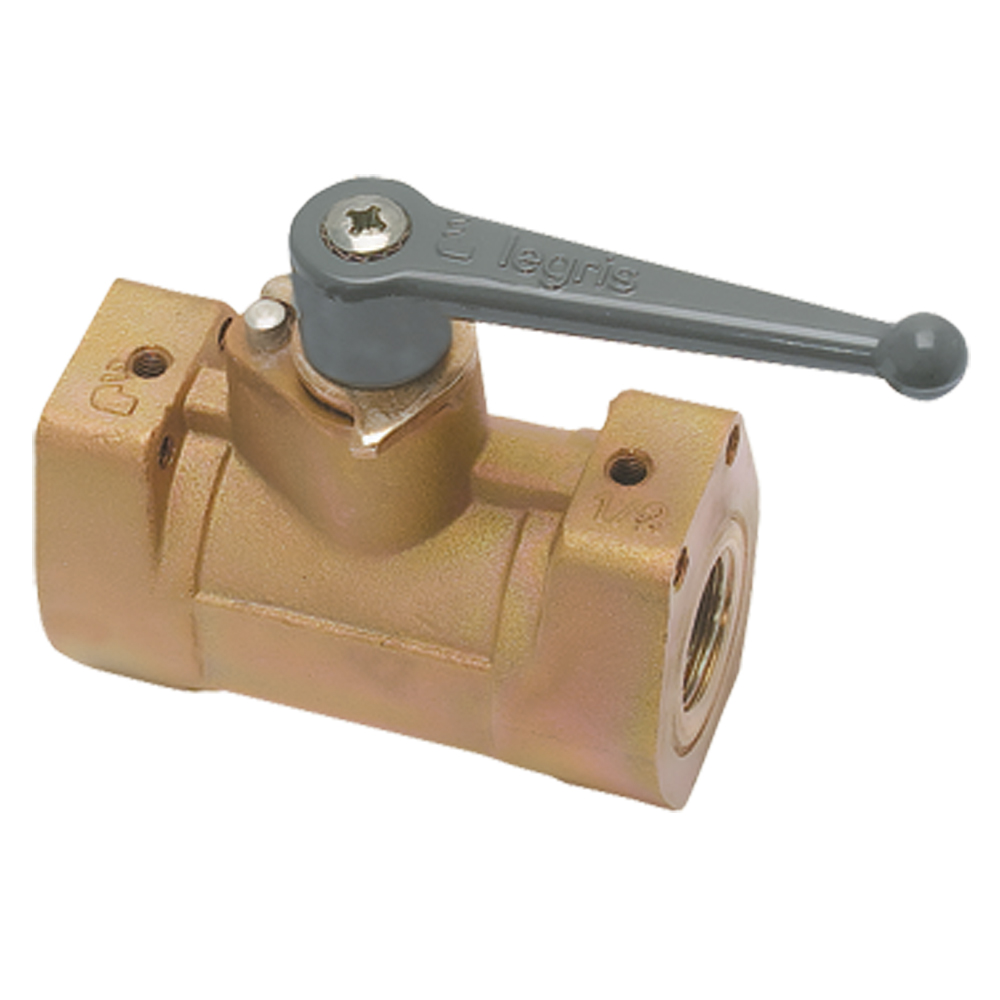

Parker Legris High Pressure Series 2/2 In-Line Ball Valve 3/8"Bspp Female
R2317,49Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 40 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
30 MPa, 300 bar
Body Material
Treated Brass
Temperature Range
-15°C to +80°C
Overview
Parker Legris High Pressure Series 2/2 In-Line Ball Valve 3/8"Bspp Female
Specifications
| Function | 2-Way |
|---|---|
| Connection Size | G3/8 |
| Connection Type | BSPP |
| Maximum Operating Pressure | 30 MPa, 300 bar |
| Temperature Range | -15°C to +80°C |
| Body Material | Treated Brass |
| Seal Material | NBR |
| Flow Rate | n/a |
| Weight | 0.722 kg |
| For Fluid Type | Inert Gases, Air |
| Product Series | High Pressure Series |
| Product Type | Ball Valves |
| Region of Origin | France |
| Quantity per Box | 2 |
| Connection 1 Thread Size (metric) | G3/8 |
| Diameter Nominal (DN) | 10 |
| Specifications Met | REACH, RoHS, DI: 2006/42/EC (Machinery Directive), DI: 97/23/EC (module PED A - diameters greater than 25 mm) |
| Application | Safety, Pneumatics, Deep-Sea Diving, Fluid Control, Textile, Automotive Process, Machine Tools, Process Control, Forming, Spectacle-Making Industry, Foundry, Turbines |
| Maximum Flow Rate | n/a |
| Actuation Type | Manual |
| Configuration | 2/2 |
| Mounting Type | Inline |
| Shape | Inline |
| Orifice Size | 10 mm |
| Operating Pressure | Vacuum to 300 bar |
| Handle Type | Long Lever (ZAMAK), Grey |
| Stem Material | Stainless Steel |
| Ball Material | Brass |
| Seat Material | NBR |
| Ball Seal Material | NBR |
| Stem Seal Material | PTFE |
| O-Ring Material | NBR |
| Catalogue reference | Parker Legris Rectus Distribution Catalogue (Europe), p.456 |
Documents
Catalogues Literature
Parker Legris Rectus Distribution Catalogue (Europe) – catalogue page for this product (p.456)
Parker Legris Rectus General Catalogue (Europe) – full catalogue
Compliance · Certifications · Safety
Certificate of conformity - REACH_Statement
Certificate of conformity - RoHS LPCE
Certificate of conformity - Mineral Conflict Statement_connectic
Certificate of conformity - 2014 68 EU_connectic
