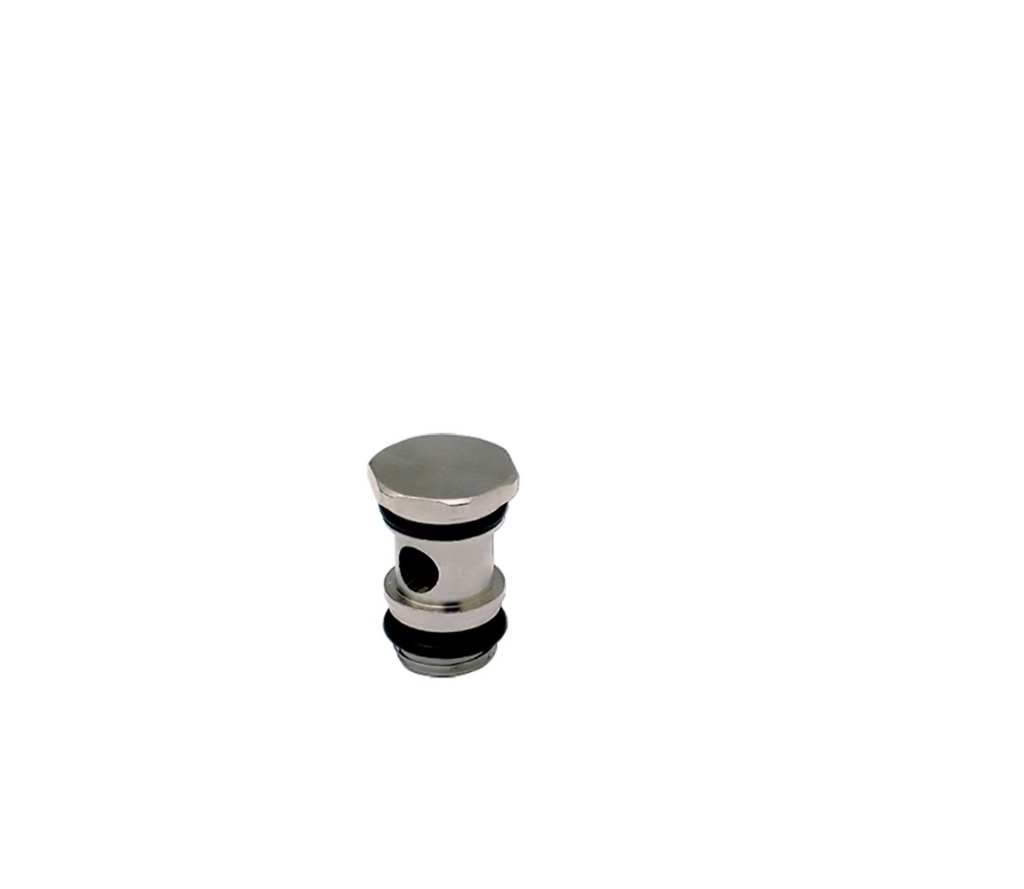

Parker Legris LF3000 1/8"Bspp Single Banjo Bolt
Parker Legris LF3000 n/a, n/a tube to G 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 1/8" BSPP single banjo bolt is a push-to-connect pneumatic fitting designed for robotics and semiconductor applications requiring compact, reliable fluid delivery.
This banjo-style connector excels in low-pressure pneumatic and instrument air systems where space is at a premium. The brass body with nickel plating and NBR seals ensures durability across a wide operating temperature range of -20 °C to +80 °C, whilst the G 1/8 male BSPP thread provides secure integration into existing manifold and valve assemblies. The 13 mm hexagon head allows straightforward installation and maintenance in confined environments.
Supplied in boxes of 10 units, this fitting combines Parker's trusted LF3000 technology with cost-effective push-in connection simplicity, eliminating the need for tools or complex assembly procedures. The robust polymer and metal construction withstands the demands of automated production environments without compromise.
Ideal for industrial automation, semiconductor manufacturing, robotics integration, and precision instrument air distribution systems.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Connection 2 Type | Male, BSPP |
| Connection 2 Size | G 1/8 inch Thread |
| Hex Size | 13 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Vacuum, Automotive, Packaging, Pneumatics, Textile, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.011 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.23 |
