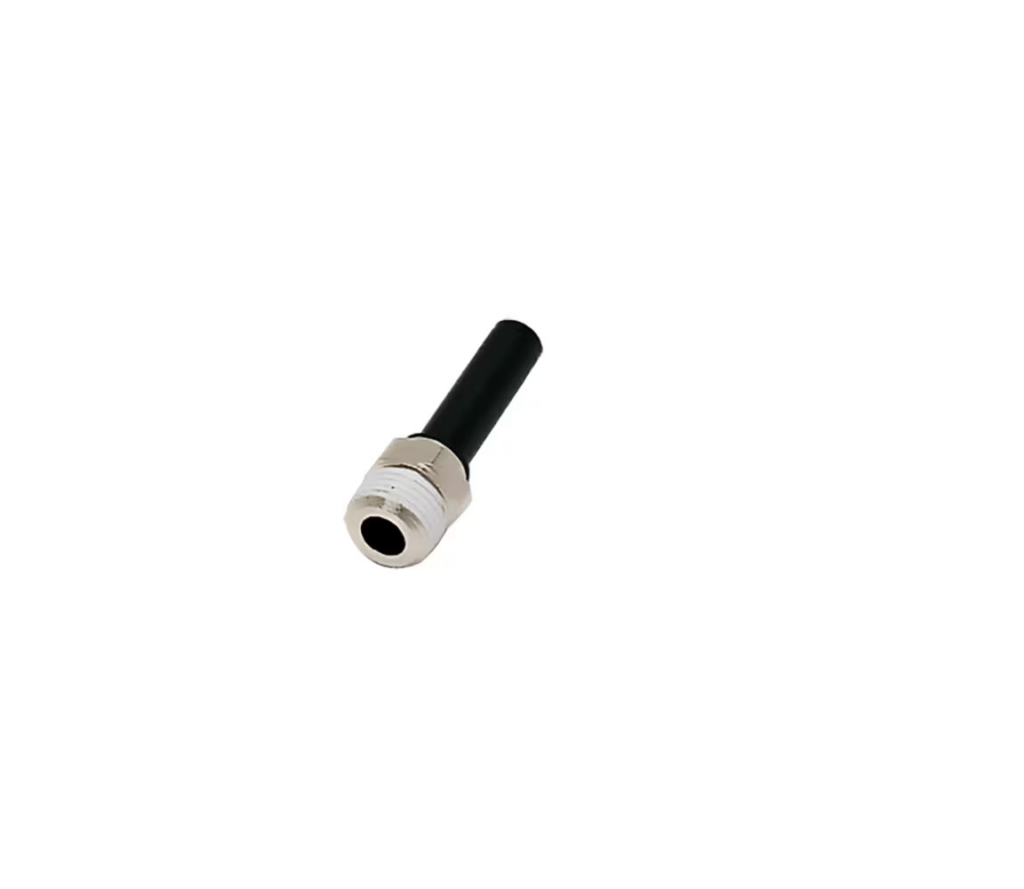

Parker Legris LF3000 12mm - 3/8"Bspt Male Stud Standpipe
Overview
The Parker Legris LF3000 12mm to 3/8" BSPT male stud standpipe is a push-to-connect fitting designed for packaging machinery and pneumatic distribution systems requiring reliable, leak-free connections.
This straight-configuration fitting combines a 12mm tube inlet with a 3/8" male BSPT threaded port, making it ideal for integrating tubing into manifold blocks and control systems. The technical polymer body with stainless steel gripping ring ensures durability across temperature ranges from -20°C to +80°C, whilst the NBR seals deliver consistent performance in low-pressure applications. The 17mm hex size facilitates straightforward installation and maintenance in confined spaces. Operating reliably under vacuum conditions rated to 755mm-Hg, this fitting suits compressed air and inert gas distribution where simplicity and dependability matter.
Widely specified in transportation, packaging automation, and general industrial pneumatic systems, the LF3000 series offers a practical solution for engineers requiring fast, tool-free connections without compromise on system integrity.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 17 |
| Weight | 0.018 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Port |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Size | R 3/8 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Straight |
| Application | Robotics, Pneumatics, Textile, Automotive, Vacuum, Packaging |
| Connection 1 Type | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | Hexagon Metric |
| Gripping Ring Material | Stainless Steel |
