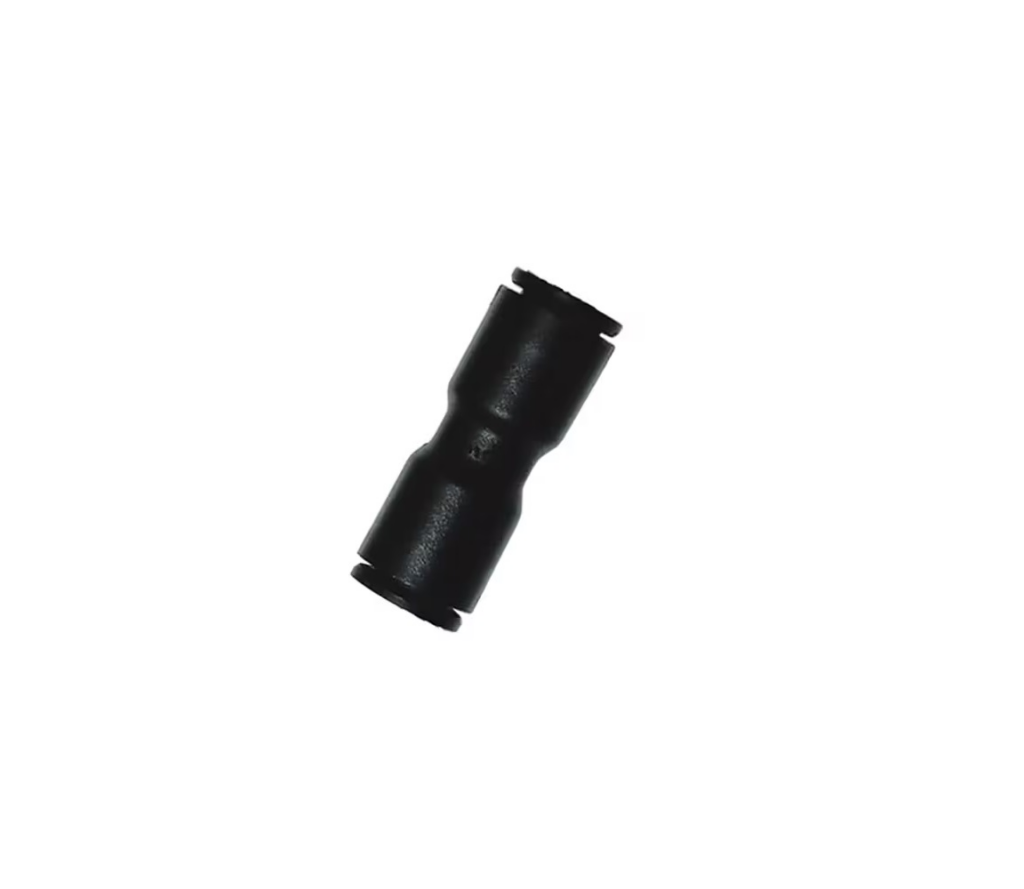

Parker Legris LF3000 14mm - 14mm Tube-to-Tube Connector
Parker Legris LF3000 straight, 14 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 14mm tube-to-tube connector is a push-in fitting designed for vacuum and low-pressure pneumatic applications.
This straight connector excels in systems requiring reliable, leak-free tubing joins without tools or fuss. The push-to-connect design eliminates the need for crimping or threading, making installation faster and reducing installation errors across compressed air, inert gas, and vacuum circuits. Built from technical polymer with a stainless steel gripping ring and NBR seal, the fitting withstands vacuum pressures to 755 mm-Hg and operates safely between −20 °C and 80 °C. Both connections accommodate 14 mm outer diameter tubing, ensuring straightforward integration into existing pneumatic networks. At just 14 grammes per unit and supplied in convenient boxes of ten, this fitting represents a practical, cost-effective solution for OEM assembly and field maintenance alike.
Ideal for industrial processing, automation systems, and instrument air distribution across manufacturing, food handling, and general industrial facilities.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 14 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 14 mm Tube O.D. |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Textile, Packaging, Pneumatics, Automotive, Robotics, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.014 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.18 |
