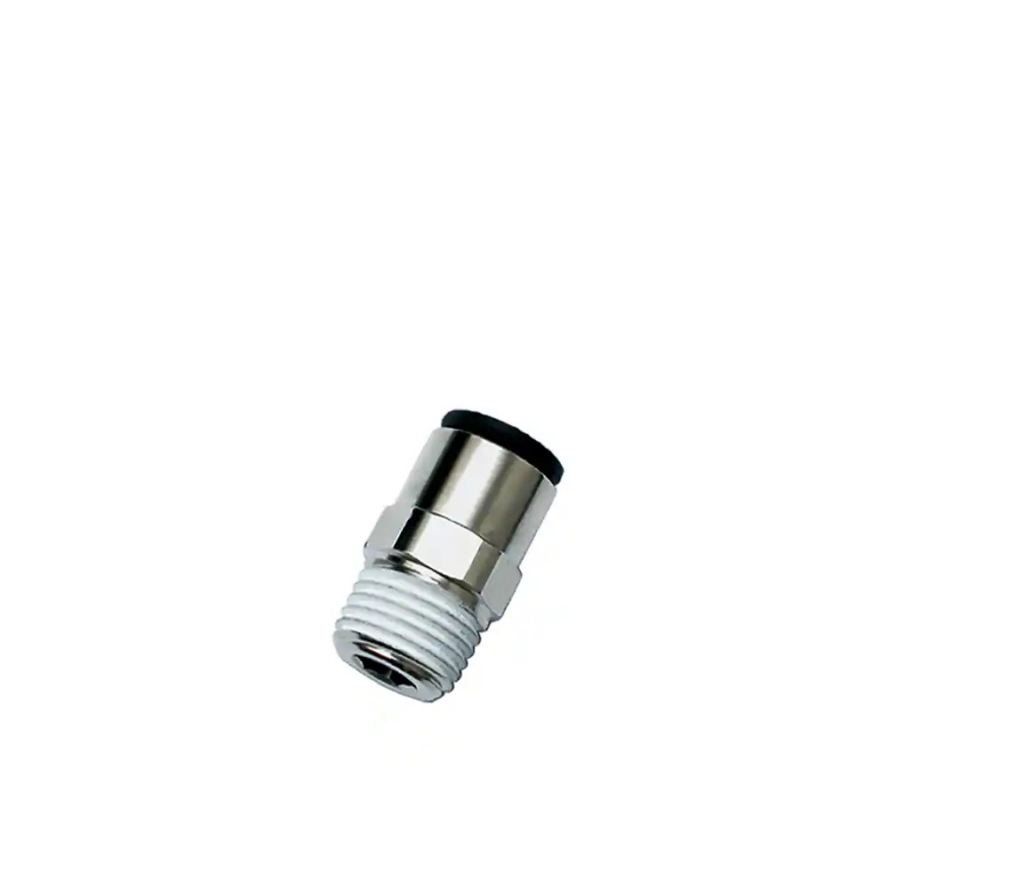

Parker Legris LF3000 14mm - 3/8"Bspt Male Stud Fitting
Overview
The Parker Legris LF3000 is a 14mm to 3/8" BSPT male stud fitting designed for reliable pneumatic connections in low-pressure compressed air systems.
This push-to-connect fitting eliminates the need for tools during installation, making it ideal for rapid assembly and reconfiguration of pneumatic lines in production environments. The brass body with nickel plating and stainless steel gripping ring ensures durability across repeated connect-disconnect cycles, whilst the NBR seal provides consistent performance across the operating range of -20°C to 80°C. Rated to 755 mm-Hg vacuum pressure, it accommodates standard 14mm tubing and delivers secure engagement without leakage in both static and dynamic applications.
Supplied in boxes of 10 with a 22mm hexagon metric profile for wrench engagement, this fitting is widely specified across industrial automation, food and beverage processing, and instrument air distribution systems.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Hex Size | 22 |
| Weight | 0.043 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 14 mm Tube O.D. |
| Connection 2 Size | R 3/8 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Straight |
| Application | Packaging, Vacuum, Robotics, Automotive, Textile, Pneumatics |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | Hexagon Metric |
| Connection 1 Type | Tube |
| Gripping Ring Material | Stainless Steel |
