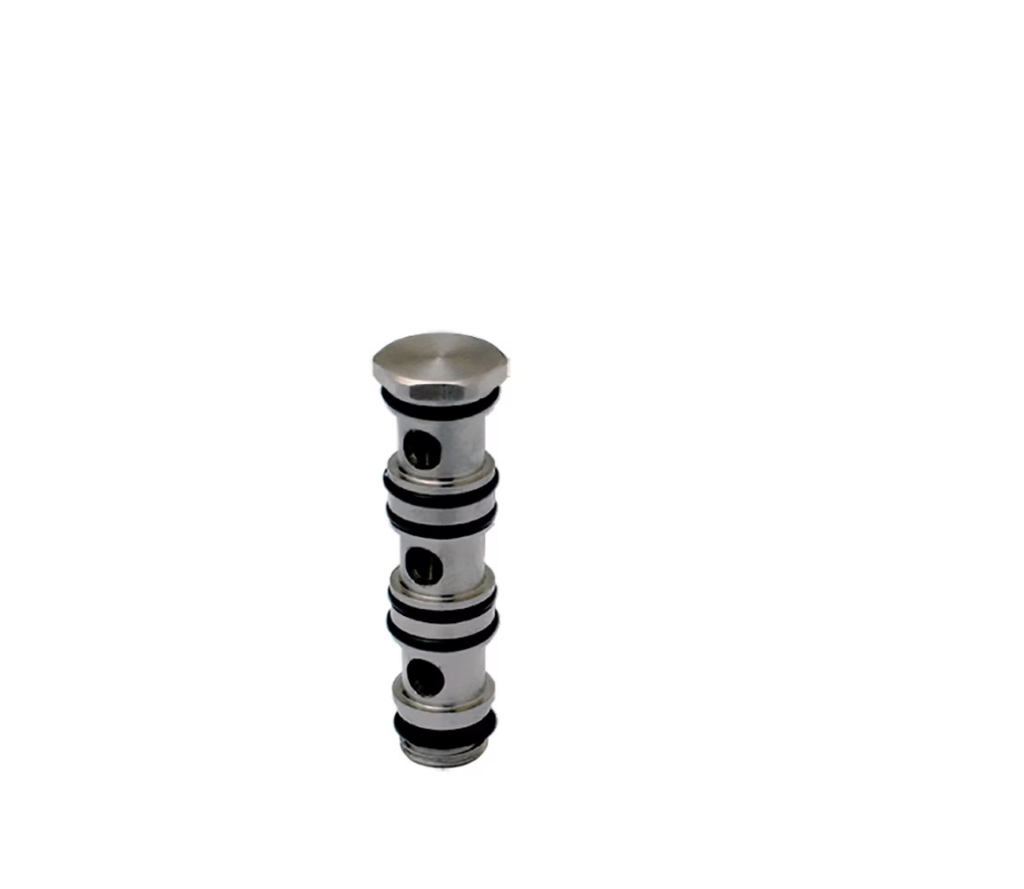

Parker Legris LF3000 3/8"Bspp Stacking Banjo for 3 Body High Modules
Parker Legris LF3000 n/a, n/a tube to G 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 3/8" BSPP stacking banjo is a push-to-connect fitting designed for vacuum and low-pressure compressed air applications in modular pneumatic systems.
This banjo connector excels in chemical processing and instrumentation where space efficiency and reliable fluid distribution matter. The stacking design allows seamless integration with 3-body high modules, whilst the push-in technology eliminates the need for tools during installation and maintenance. Built from nickel-plated brass with an NBR seal, the fitting delivers robust performance across a wide operating temperature range from −20 °C to 80 °C, making it suitable for both ambient and temperature-controlled environments.
The G 3/8 male BSPP thread accommodates standard industrial connections, and the 20mm hexagon body ensures secure handling and compact integration into manifold assemblies. Each pack contains 10 units, simplifying procurement for batch installations.
Ideal for chemical processing facilities, food and beverage production, and general industrial automation where modular pneumatic control is essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Connection 2 Type | Male, BSPP |
| Connection 2 Size | G 3/8 inch Thread |
| Hex Size | 20 |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Robotics, Packaging, Automotive, Textile, Pneumatics, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.069 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.23 |
