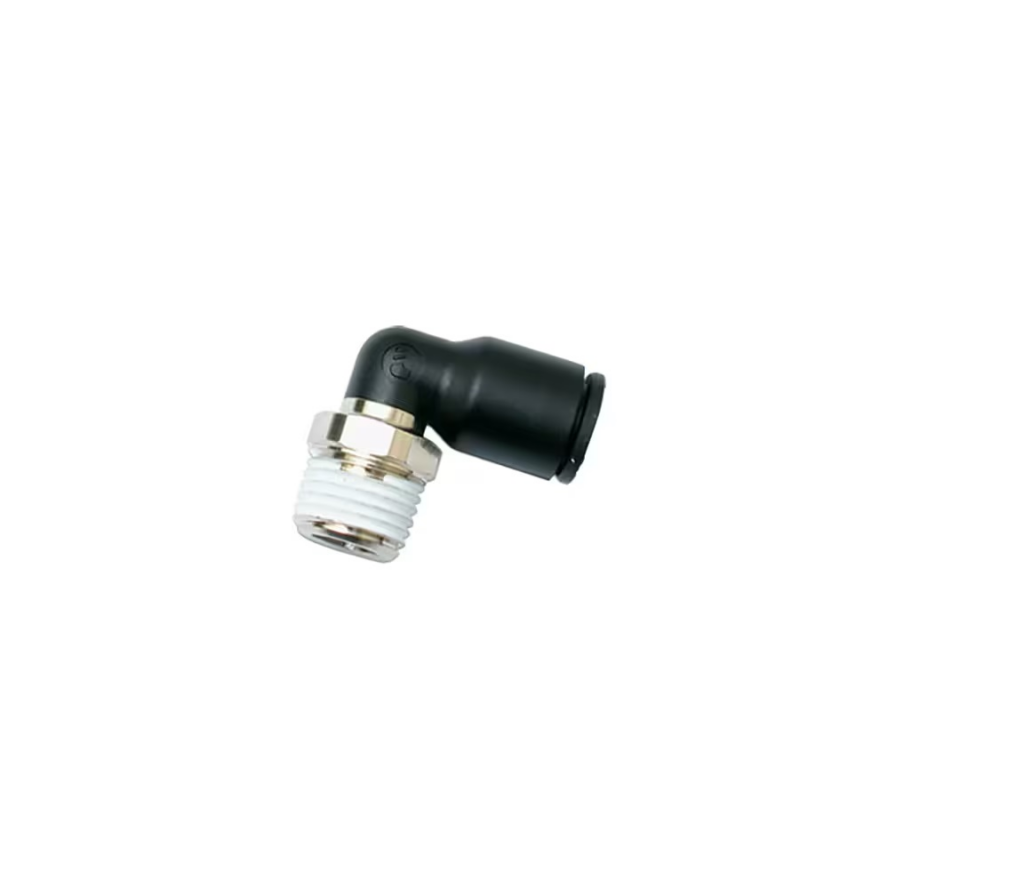

Parker Legris LF3000 8mm - 3/8"Bspt Male Stud Elbow
Overview
The Parker Legris LF3000 8mm – 3/8" BSPT Male Stud Elbow is a 90-degree push-to-connect pneumatic fitting designed for compressed air systems in automotive and industrial manufacturing environments.
This elbow fitting offers quick, tool-free connections that reduce assembly time and minimise air leakage in low-pressure applications. The 8mm tube connection pairs with a 3/8" BSPT male port, making it ideal for routing air lines around equipment where space or access is limited. Constructed from durable technical polymer with a stainless steel gripping ring and NBR sealing material, the fitting operates reliably across a temperature range of –20 °C to +80 °C and maintains a vacuum rating of 755 mm Hg. The 17mm hexagon metric body allows for secure installation and removal when required.
Supplied in boxes of ten units, this fitting serves industrial automation, food and beverage processing, and general instrument air distribution networks where dependable, compact connections are essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 17 |
| Weight | 0.018 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Size | R 3/8 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Elbow 90° |
| Application | Pneumatics, Vacuum, Packaging, Textile, Robotics, Automotive |
| Gripping Ring Material | Stainless Steel |
| Connection 1 Type | Tube |
| Hex Type | Hexagon Metric |
| Vacuum Pressure Rating | 755 mm-Hg |
