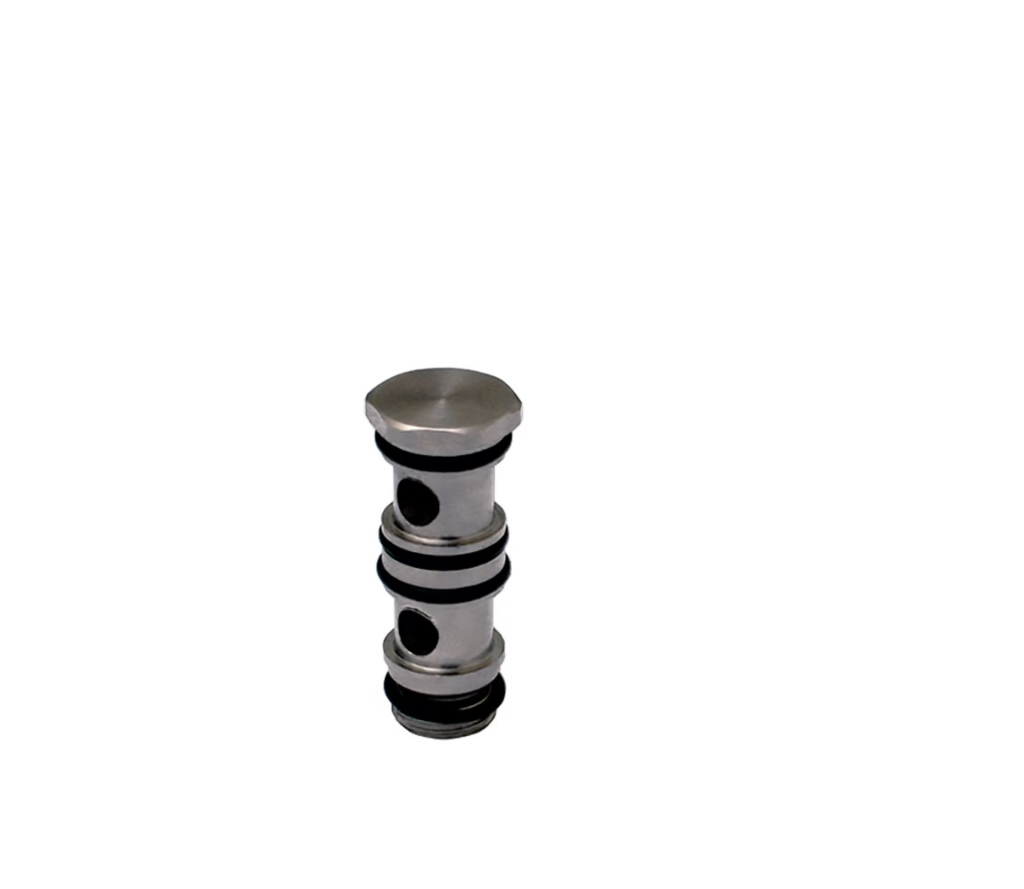

Parker Legris LF3000 bspp M5 Metric Stacking Banjo for 2 Body High Modules
Parker Legris LF3000 n/a, n/a tube to M 5, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 bspp M5 Metric Stacking Banjo is a push-to-connect fitting designed for pneumatic applications in low-pressure compressed air systems. This banjo connector enables quick and tool-free installation onto 2-body high modules, simplifying assembly and reducing downtime during system configuration or maintenance.
The LF3000 series excels in applications requiring reliable, leak-free connections without the need for traditional threaded fittings or adhesives. The M5×0.8 male metric thread accommodates standard pneumatic manifold ports, whilst the nickel-plated brass body with NBR seals ensures durability across demanding operating conditions. Rated for temperatures between −20 °C and 80 °C with a vacuum rating of 755 mm-Hg, this fitting maintains consistent performance in both pressurised and partially evacuated systems.
The compact stacking design facilitates space-efficient manifold layouts, ideal for integration into complex control systems. Supplied in packs of ten, the LF3000 banjo serves industrial automation, food and beverage processing, and instrument air networks.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Connection 2 Type | Metric, Male |
| Connection 2 Size | M5x0.8 mm Thread |
| Hex Type | Hexagon Metric |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Robotics, Vacuum, Textile, Automotive, Packaging, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.005 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.23 |
