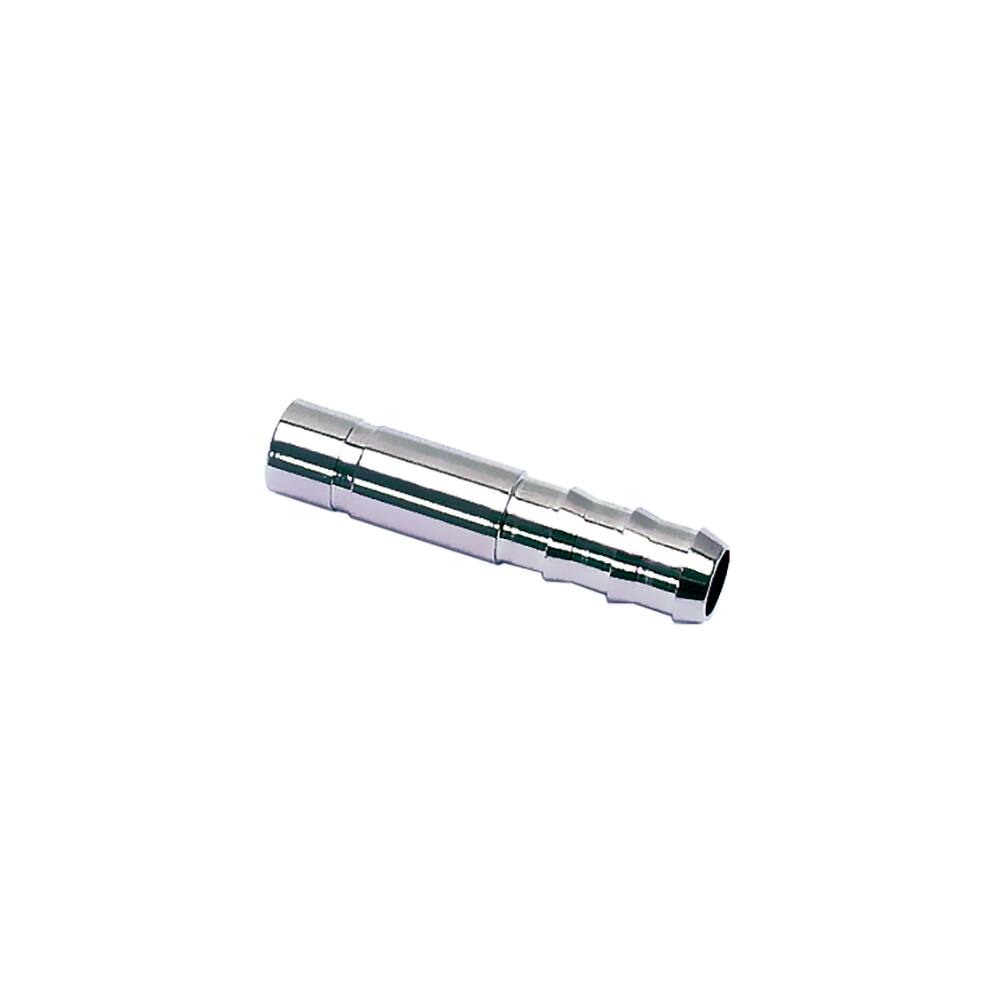

Parker Legris LF3600 12mm - 1/2'' Plug-In Barb Connector
Overview
The Parker Legris LF3600 is a straight barbed connector designed for reliable tube-to-tube connections in compressed air and low-pressure fluid systems. This push-to-connect fitting accommodates 12 mm tubing on one end and 12.5 mm on the other, enabling flexible integration into process control applications where quick assembly and disassembly are essential. Constructed from FDA chemical nickel-plated brass, the connector withstands operating pressures up to 30 bar and temperatures ranging from −25 °C to 150 °C, making it suitable for demanding industrial environments. The nickel plating provides corrosion resistance whilst maintaining compliance with REACH regulations. With a vacuum rating of 755 mm-Hg, this fitting performs reliably in both pressurised and partial-vacuum conditions typical of pneumatic circuits. Supplied in boxes of ten units, the LF3600 serves food and beverage processing, process instrumentation, and general industrial automation where hygienic design and material integrity are required.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | n/a |
| Weight | 0.019 kg |
| For Fluid Type | Lubricants (Grease), Water, Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Barb |
| Connection 1 Size | 12 mm (O.D.) |
| Connection 2 Size | 12.5 mm (O.D.) |
| Shape | Straight |
| Specifications Met | ATEX DI: 94/9/EC, PED, FDA 21 CFR (Food), EC RG: 1935/2004, RoHS, UL 94 V-0 (Please Consult Us), REACH |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Application | Fluid Control, Pneumatic, Transportation, General Industrial, In Plant Pneumatic, Medical, Industrial, Process Control |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
| Connection 1 Type | Tube |
| Connection 2 Type | Tube |
