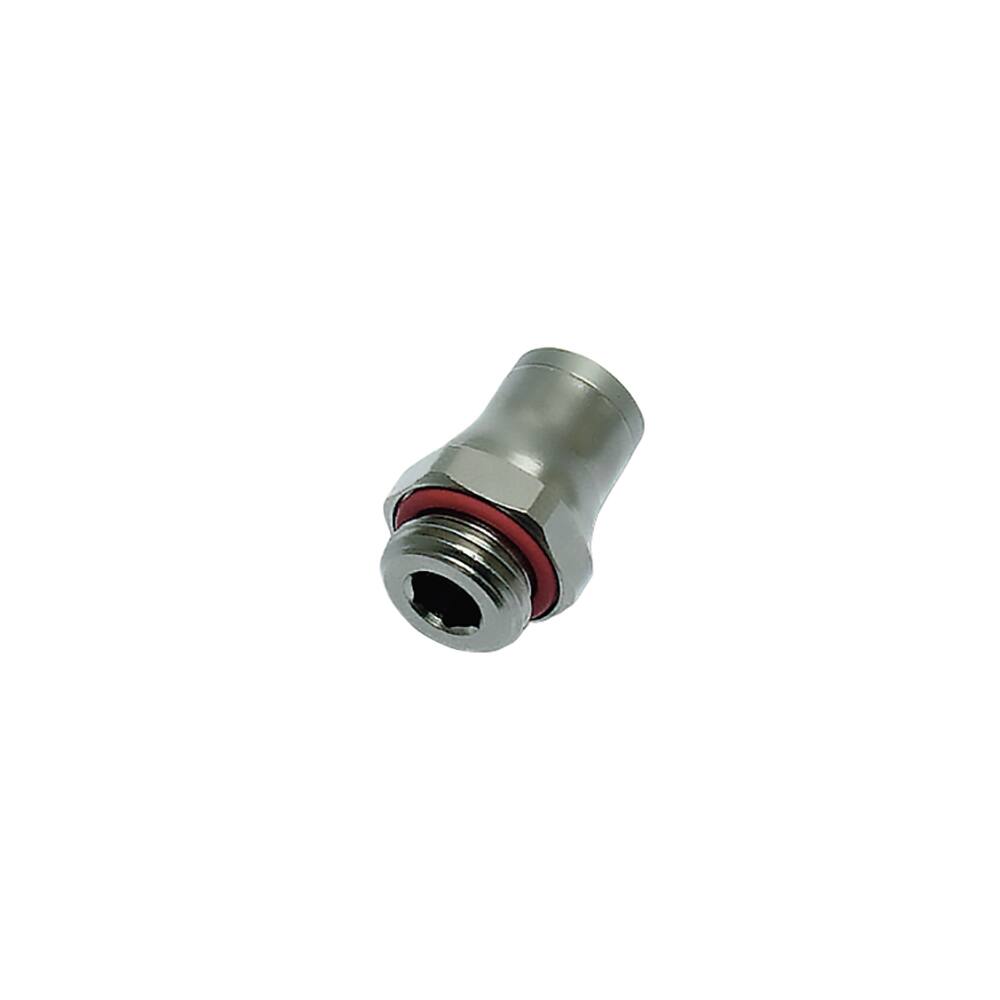

Parker Legris LF3600 14mm - 1/2'' Bspp Male Stud Fitting
Overview
The Parker Legris LF3600 is a push-to-connect straight stud fitting that joins 14 mm tubes to 1/2" BSPP male ports in low-pressure pneumatic and fluid distribution systems.
This compact nickel-plated brass fitting excels in applications requiring reliable, leak-free connections without tools or fittings expertise. The push-to-connect design eliminates installation time and reduces maintenance costs across in-plant pneumatic networks. FKM seals ensure compatibility with lubricants and grease, whilst the FDA chemical nickel-plated body resists corrosion in demanding environments. Operating reliably between −25 °C and 150 °C with a maximum working pressure of 30 bar, this fitting meets RoHS compliance requirements and is supplied in boxes of five units.
Ideal for transportation, manufacturing automation, and process air systems where quick assembly and dependable performance are essential.
Specifications
| Industry | Transportation |
|---|---|
| Brand | Legris |
| Shape | Straight |
| Connection 2 Size | G 1/2 |
| For Fluid Type | Lubricants (Grease) |
| Connection 1 Type | Tube |
| Application | In Plant Pneumatic |
| Vacuum Pressure Rating | 755 mm-Hg |
| Weight | 0.045 kg |
| Technology | Fluid & Gas Handling |
| Connection 2 Type | Male BSPP |
| Configuration | Tube to Port |
| Body Material | Brass, FDA Chemical Nickel-plated |
| Specifications Met | RoHS |
| Quantity per Box | 5 |
| Seal Material | FKM |
| Division | Low Pressure Connectors Europe Division |
| Connection 3 Type | n/a |
| Maximum Operating Temperature | 150 °C |
| Maximum Operating Pressure | 30 bar |
| Connection 1 Size | 14 mm (O.D.) |
| Connection 3 Size | n/a |
| Minimum Operating Temperature | -25 °C |
| Coating | FDA Chemical Nickel-plated |
| Product Type | Push-to-Connect Fittings |
| Product Style | Stud Fitting |
