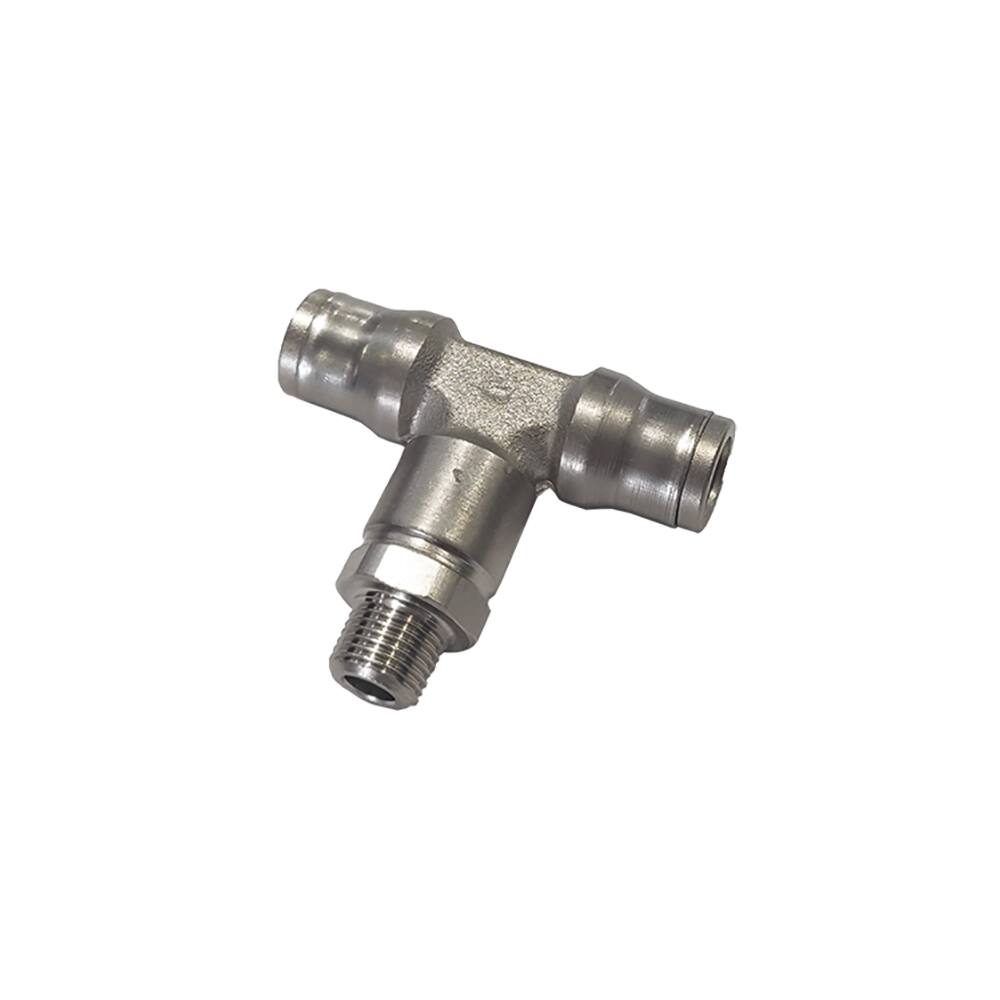

Parker Legris LF3600 14mm - 1/2'' Bspt Male Stud Branch Tee
Overview
The Parker Legris LF3600 is a 14mm push-to-connect branch tee fitting with a 1/2" BSPT male stud port, designed for in-plant pneumatic and low-pressure fluid distribution systems.
This adjustable stud fitting excels in applications requiring reliable connections across multiple distribution lines without the need for tools or complicated assembly. The nickel-plated brass body with FKM seals delivers robust performance in demanding environments, rated for pressures up to 30 bar and temperatures spanning –25 °C to 150 °C. Its configuration supports simultaneous connections to two 14mm tubes and one threaded port, making it ideal for centralised lubrication systems, compressed air networks, and instrument air controls where space efficiency and quick maintenance matter.
The fitting's compact design and FDA-compliant coating ensure suitability for general industrial applications across manufacturing, process automation, and equipment control systems.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.125 kg |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 5 |
| Configuration | Tube to Port |
| Connection 1 Size | 14 mm (O.D.) |
| Connection 2 Size | 14 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | R 1/2 |
| Connection 3 Type | Male BSPT |
| Shape | Branch Tee |
| Coating | FDA Chemical Nickel-plated |
| Application | Pneumatic, Process Control, Medical, Fluid Control, Transportation, General Industrial, Industrial, In Plant Pneumatic |
| Specifications Met | ATEX DI: 94/9/EC, PED, RoHS, EC RG: 1935/2004, REACH, FDA 21 CFR (Food), UL 94 V-0 (Please Consult Us) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
