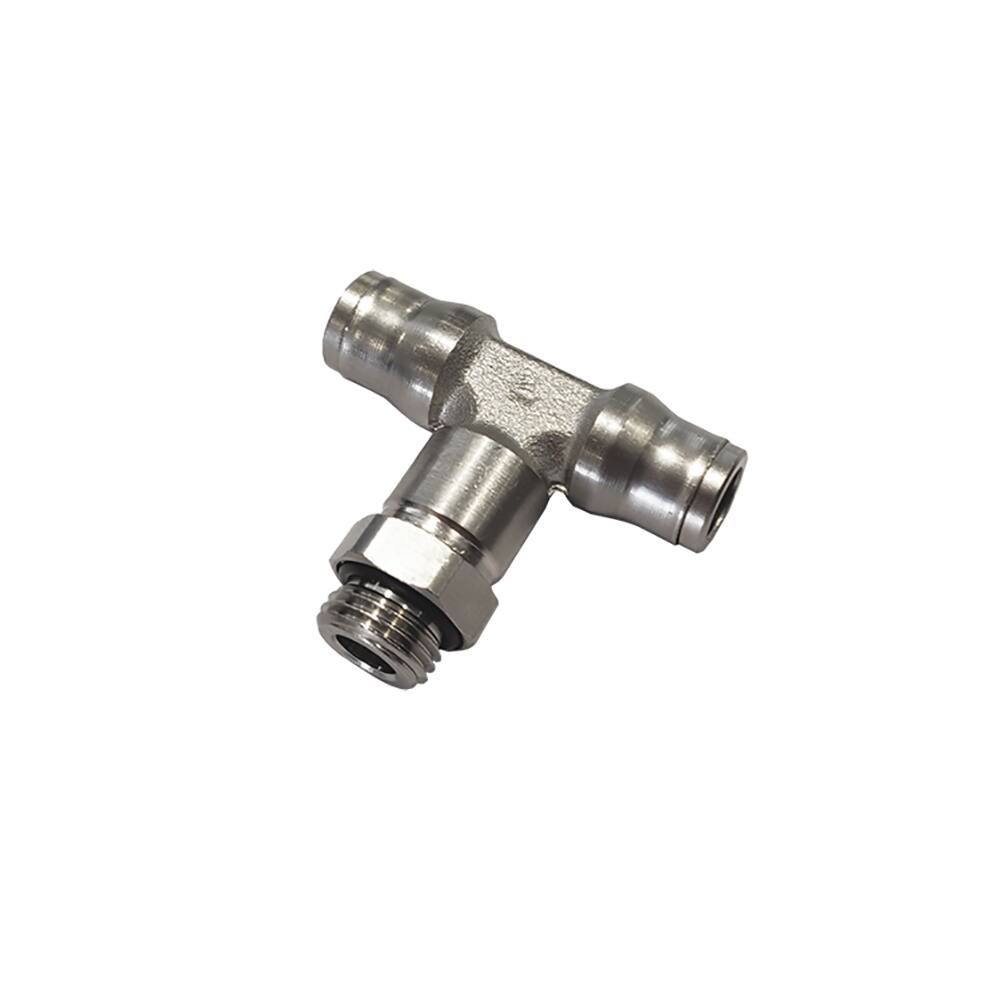

Parker Legris LF3600 4mm - 1/8'' Bspp Male Stud Branch Tee
Overview
The Parker Legris LF3600 is a push-to-connect branch tee fitting designed for low-pressure water distribution in automotive and manufacturing environments. This stud fitting connects 4 mm tubing on two ports to a G 1/8 male BSPP thread, making it ideal for compact in-plant fluid systems where space and installation speed matter. The FDA chemical nickel-plated brass body withstands pressures up to 30 bar and temperatures from –25 °C to 150 °C, whilst the FKM seal ensures reliable performance across demanding operational ranges. The adjustable design simplifies alignment during assembly, reducing installation time without sacrificing durability. Supplied in boxes of 10, these fittings meet RoHS compliance requirements and are well suited to life sciences, automotive manufacturing, and process control applications requiring dependable, quick-connect fluid handling solutions.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.021 kg |
| For Fluid Type | Lubricants (Grease), Air (Compressed Air), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm (O.D.) |
| Connection 2 Size | 4 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | G 1/8 |
| Connection 3 Type | Male BSPP |
| Shape | Branch Tee |
| Coating | FDA Chemical Nickel-plated |
| Application | Welding Robots, Printing, Food Processing, Misting, Medical Equipment, In-Plant Automotive |
| Vacuum Pressure Rating | 755 mm-Hg |
| Specifications Met | PED, EC RG: 1935/2004, FDA 21 CFR (Food), REACH, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), RoHS |
| Connection 1 Type | Tube |
