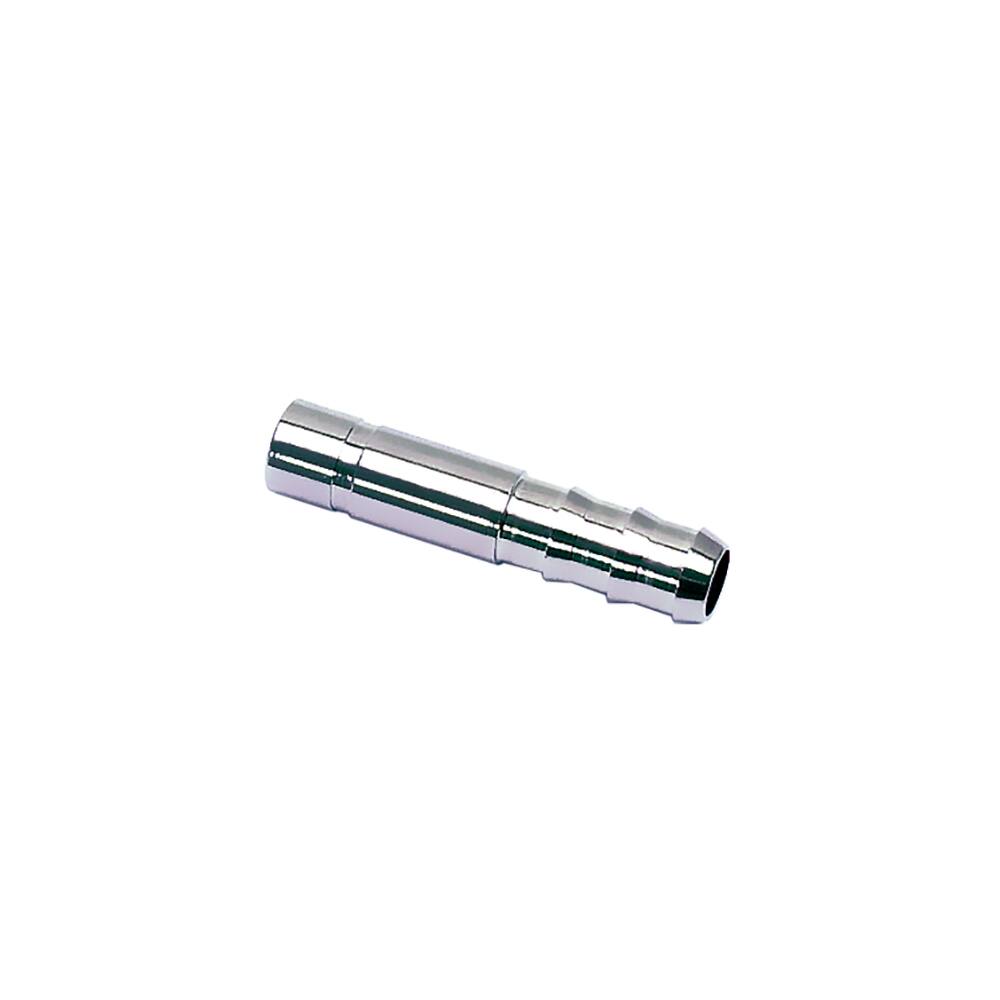

Parker Legris LF3600 4mm - 5mm Plug-In Barb Connector
Overview
The Parker Legris LF3600 4mm – 5mm Plug-In Barb Connector is a straight tube-to-tube fitting designed for low-pressure fluid and gas distribution in industrial applications.
This push-to-connect barb connector simplifies system assembly by eliminating the need for tools or clamps, making it ideal for applications where quick, reliable connections are essential. The nickel-plated brass construction provides excellent corrosion resistance and durability, whilst the barbed design ensures secure engagement with tubing. Operating across a temperature range of –25 °C to 150 °C, this connector handles demanding environments with confidence. It accommodates tubing with outer diameters of 4 mm and 5 mm, whilst maintaining a rated working pressure of 30 bar and vacuum rating of 755 mm-Hg, making it suitable for both pneumatic and low-pressure lubricant distribution systems.
Supplied in boxes of 10 units and compliant with REACH regulations, this connector serves healthcare, food processing, laboratory automation, and general industrial pneumatic applications.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | n/a |
| Weight | 0.011 kg |
| For Fluid Type | Water, Air (Compressed Air), Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Barb |
| Connection 1 Size | 10 mm (O.D.) |
| Connection 2 Size | 6.3 mm (O.D.) |
| Shape | Straight |
| Application | General Industrial, Transportation, Fluid Control, Pneumatic, Medical, Process Control, In Plant Pneumatic, Industrial |
| Connection 2 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Size | n/a |
| Specifications Met | PED, RoHS, EC RG: 1935/2004, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), FDA 21 CFR (Food), REACH |
| Connection 3 Type | n/a |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
