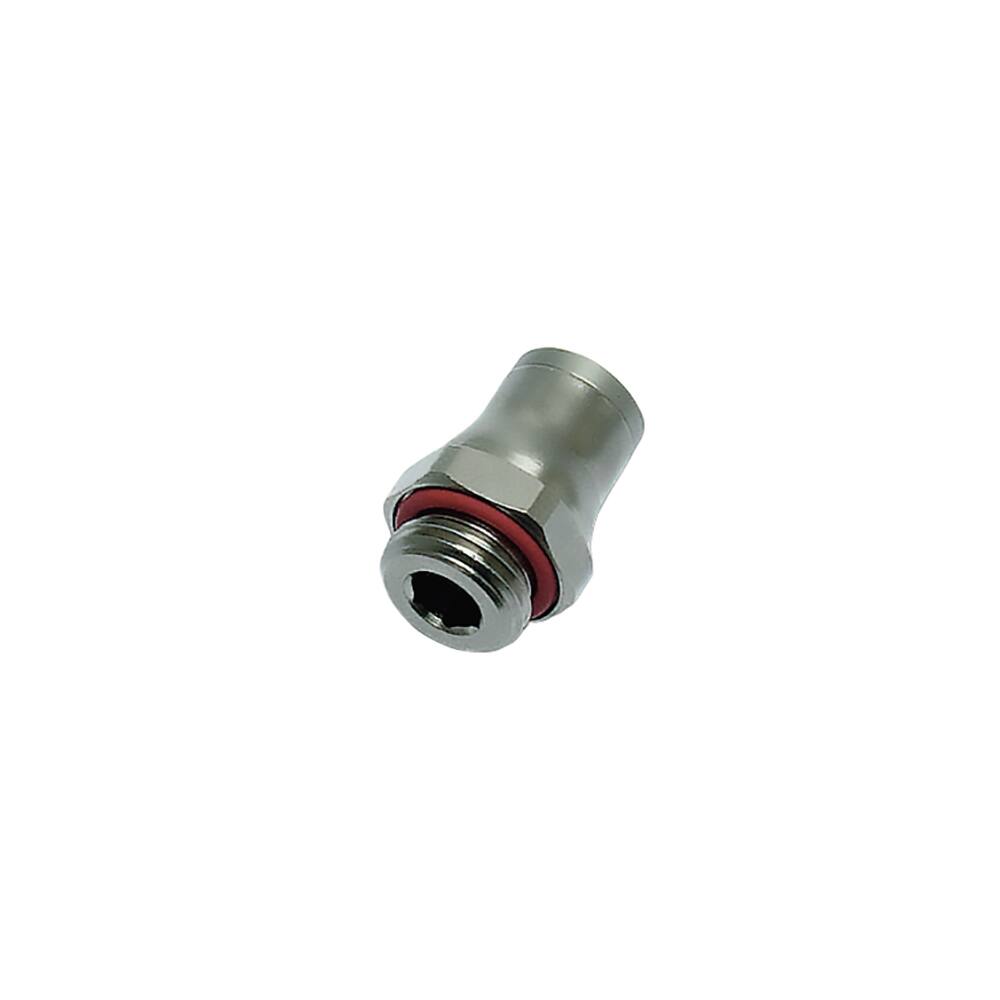

Parker Legris LF3600 8mm - 1/8'' Bspp Male Stud Fitting
Overview
The Parker Legris LF3600 is a push-to-connect stud fitting designed for low-pressure lubricant distribution and grease line applications in industrial systems. This straight connector bridges 8 mm O.D. tubing to a G 1/8 male BSPP port, making it ideal for compact manifold installations where space is at a premium. The nickel-plated brass body delivers reliable performance across a wide operating range from –25 °C to +150 °C, whilst maintaining a maximum working pressure of 30 bar and supporting vacuum ratings to 755 mm-Hg. FKM seals ensure chemical compatibility and durability in demanding lubrication circuits. Supplied in convenient boxes of ten units, this fitting meets FDA 21 CFR standards for food-contact applications. Widely used across transportation, process automation, and industrial equipment where controlled fluid delivery is essential.
Specifications
| For Fluid Type | Lubricants (Grease) |
|---|---|
| Connection 3 Size | n/a |
| Weight | 0.014 kg |
| Connection 1 Type | Tube |
| Industry | Transportation |
| Configuration | Tube to Port |
| Application | Industrial |
| Connection 1 Size | 8 mm (O.D.) |
| Specifications Met | FDA 21 CFR |
| Division | Low Pressure Connectors Europe Division |
| Brand | Parker |
| Minimum Operating Temperature | -25 °C |
| Connection 2 Size | G 1/8 |
| Seal Material | FKM |
| Maximum Operating Temperature | 150 °C |
| Quantity per Box | 10 |
| Body Material | Brass, FDA Chemical Nickel-plated |
| Maximum Operating Pressure | 30 bar |
| Technology | Fluid & Gas Handling |
| Coating | FDA Chemical Nickel-plated |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 2 Type | Male BSPP |
| Shape | Straight |
| Product Type | Push-to-Connect Fittings |
| Connection 3 Type | n/a |
| Product Style | Stud Fitting |
