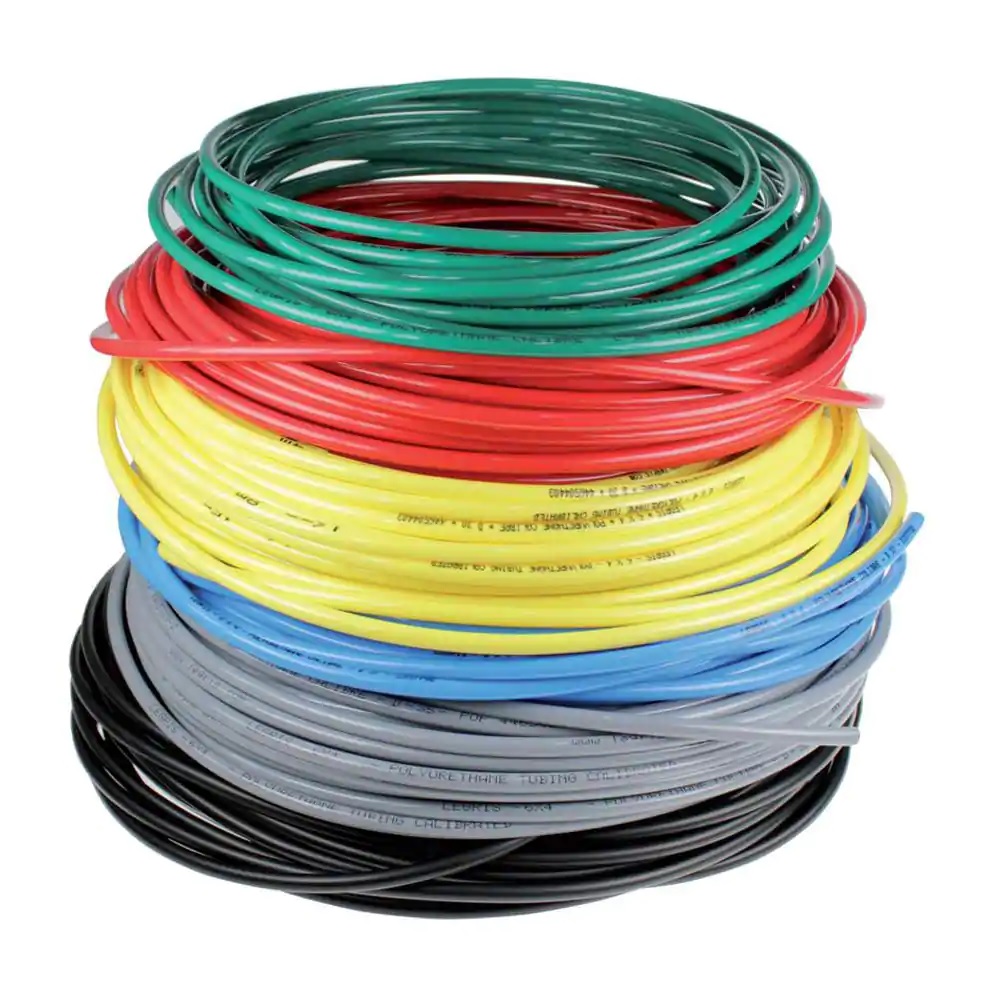

Parker Legris Polyurethane PU Ester Tubing 5mm OD 3mm ID BLUE 25m TubePack
Overview
1025U0504 - Parker Legris Polyurethane PU Ester Tubing 5mm OD 3mm ID BLUE 25m TubePack
Polyurethane's 3 specific materials - ether, ester and food-grade "crystal" - offer excellent flexibility and outstanding use in a wide range of applications, allowing for up to 50% space reduction when compared to semi-rigid PA tubing.
Features/Benefits:
- Excellent Mechanical Properties
• Consistent tensile strength for optimum longevity
• Optimal bend radius
• Good vibration absorption
• Unsurpassed abrasion resistance for a single layer tubing
• UV-resistant
• Superior vacuum capability due to surface hardness
• Remaining length marking
• Silicone-free
- 3 Material Grades
• PU ester: perfect for pneumatic applications
• PU ether: no water absorption; superior chemical resistance to PU ester
• PU ether food-grade "crystal":
identification of fluids and circuits
chemical resistance superior to PU ether
improved longevity
Markets:
• Food and Beverage
• Miscellaneous Manufacturing
• Factory Automation
• Vehicle Assembly Facilities
Applications:
• Compressed Air and Industrial Fluids Conveying
• Standard Pneumatic Applications Requiring Rapid Cycles
• Applications Subjected to Water and High Humidity (PU ether)
• Suitable for Vacuum Applications
Technologies:
• PU Tubing
• Polyurethane Tubing
• Industrial Tubing
Technical Characteristics:
• Fluids: Compressed air, industrial fluids (depending on the material type)
• Materials: Polyurethane ester, Polyurethane ether, Polyurethane ether food-grade "crystal"
• Pressure: Vacuum to 12 bar
• Temperature: -20°C to +70°C
Regulations:
Industrial
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 97/23/EC (PED)
• RG: 1907/2006 (REACH)
Food (PU ether food-grade "crystal")
• FDA: 21 CFR 177.2600, 178.3297, 176.170, 178.2010
• RG: 1935/2004 EC
Product Types:
• Polyurethane Ester Tubing
• Polyurethane Ether Tubing
Specifications
| Maximum Operating Pressure | 12 bar |
|---|---|
| Temperature Range | -20°C to +70°C |
| Weight | 0.48 kg/package |
| Tube I.D. (mm) | 3 |
| Tube O.D. (mm) | 5 |
| Tubing Material | PU |
| Color | BLUE |
| Length (m) | 25 |
| Specifications Met | RoHS 2002/95/EC, 2011/65/EC (Industrial), REACH 1907/2006 (Industrial), PED 97/23/EC (Industrial), FDA 21 CFR 177.2600, 178.3297, 176.170, 178.2010 (Food - PU ether food-grade "crystal"), RG: 1935/2004 EC (Food - PU ether food-grade "crystal") |
| Media | Air (Compressed Air), Industrial Fluids (depending on the material type) |
| Application | Food Processing, Automation, Cabling, Pneumatics, In-Plant Automotive, Robotics, Rapid Cycles |
| Vacuum Pressure Rating | 755 mm-Hg |
| Number of Tubes | 1 |
