Parker Hannifin Genuine

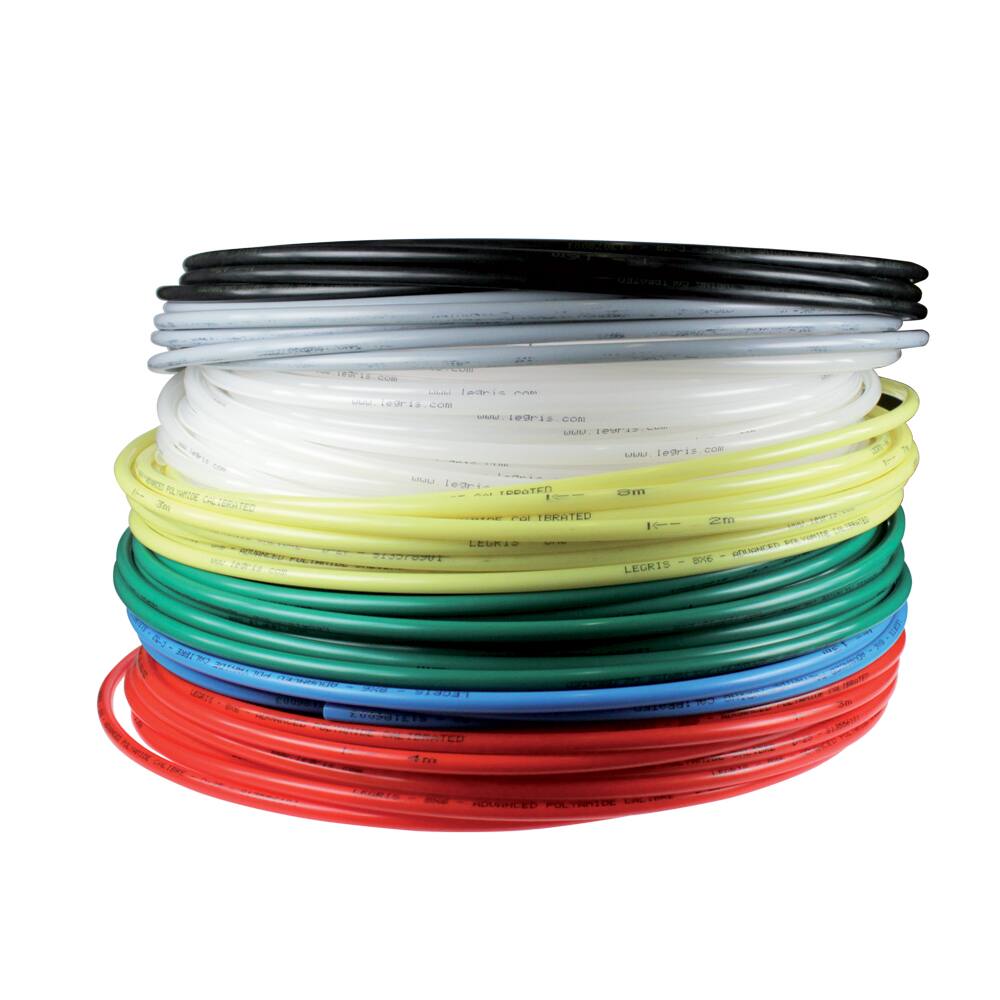

Parker Legris Semi-Rigid Polyamide PA Tubing 12mm OD 10mm ID BLACK 25m TubePack
R767,42Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
50 bar
Temperature Range
-40°C to +up to 100°C See the Graph “Working Pressure/Working Temperature”
Weight
1.358 kg/package
Overview
Parker Legris Semi-Rigid Polyamide PA Tubing 12mm OD 10mm ID BLACK 25m TubePack
Specifications
| Maximum Operating Pressure | 50 bar |
|---|---|
| Temperature Range | -40°C to +up to 100°C See the Graph “Working Pressure/Working Temperature” |
| Weight | 1.358 kg/package |
| Tube I.D. (mm) | 10 |
| Tube O.D. (mm) | 12 |
| Tubing Material | PA |
| Color | BLACK |
| Length (m) | 25 |
| Application | Industrial Machinery, Motion Technologies, Packaging, Compressed Air, Robotics, Tooling |
| Specifications Met | RoHS 2002/95/EC, 2011/65/EC (Industrial), REACH 1907/2006 (Industrial), PED 97/23/EC (Industrial) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Media | Industrial Fluids (Rigid PA), Industrial Fluids (Semi-Rigid PA), Air (Compressed Air: Semi-Rigid PA), Lubricants (Rigid PA), Air (Compressed Air: Rigid PA) |
| Number of Tubes | 1 |
Documents
Compliance · Certifications · Safety
Certificate of conformity - NF E49-100_tube PA
Certificate of conformity - REACH_Statement
Certificate of conformity - PFAS
Certificate of conformity - RoHS LPCE
Certificate of conformity - Mineral Conflict Statement_connectic
Certificate of conformity - DIN73378 & DIN74324-1_tube PA catalogue
Certificate of conformity - 2014 68 EU_connectic
Catalogues & Literature
Technical Tubing And Hose
Parker LPCE--Thermal Management Brochure Legris Rectus Transair
Parker Legris Rectus - General Catalogue
Tubing Part Number Identification
PA Tubing Datasheet
Packaging For Technical Tubing And Hose
