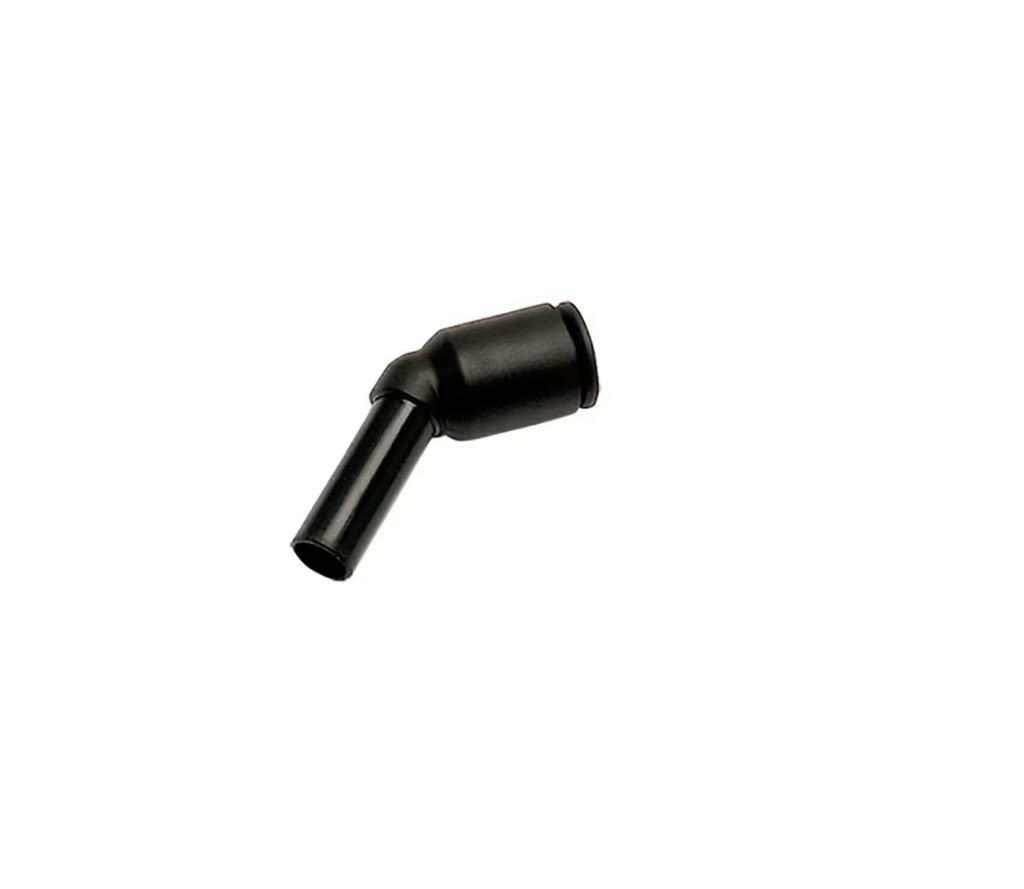

Parker LF300 45° PLUG-IN D6 TAIL D6 8mm Equal Elbow
Overview
Parker Legris and Rectus are Parker's brands for low-pressure pneumatic connections — push-in fittings, brass compression fittings, quick-couplers, tubing and blowguns. Engineered for industrial and process pneumatic systems, these connection products are renowned for fast, reliable assembly, compliance with international thread and sealing standards (BSPP, BSPT, NPT, metric), and consistent quality across the EU, NA and APAC distribution network.
Markets:
- Industrial automation
- Pneumatic actuator control
- Process and instrument air
- Mobile / heavy-duty equipment
- Robotics and material handling
Applications:
- Compressed air distribution and routing
- Pneumatic cylinder, valve and tool connections
- Tubing and hose terminations
- Quick disconnect for tooling and inspection
Features/Benefits:
- Multiple thread standards (BSPP, BSPT, NPT, metric)
- Brass, stainless steel and polymer body options
- Push-in, compression and quick-coupler styles
- ISO-standard interchange (where applicable)
- Wide working pressure and temperature range
- Compliance with PED, REACH, RoHS and ATEX (where applicable)
Reference: Parker Legris & Rectus Distribution Catalogue CAT/0214/UK (2020).
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | n/a |
| Weight | 0.002 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube Stem |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | 6 mm Hose I.D. |
| Shape | Elbow 45° |
| Application | Robotics, Pneumatics, Vacuum, Textile, Packaging, Automotive |
| Gripping Ring Material | Stainless Steel |
| Connection 1 Type | Tube |
| Hex Type | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 2 Type | n/a |
| Catalogue reference | Parker Legris Rectus Distribution Catalogue (Europe), p.30 |
