Parker Hannifin Genuine

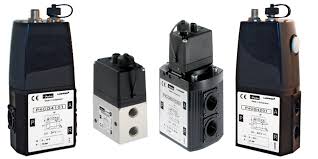

Parker Lucifer EPP4 Comfort EP Regulator
R47859,73Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 90 days
Or request a confirmed lead time for this SKU →
Valve function
proportional pressure control
Working media
compressed air
For Fluid Type
Lubricated or non lubricated air,neutral gases
Overview
Parker Lucifer EPP4 Comfort EP Regulator
Specifications
| For Fluid Type | Lubricated or non lubricated air,neutral gases |
|---|---|
| Control Signal | 0 - 10 V |
| Electrical Connection | M12 - 8 pin; male connector power supply/control signal |
| Maximum Regulating Pressure | 20 bar |
| Options | - |
| Port Size | 1/2" BSP |
| Maximum Pressure Differential | 21 bar |
| Power Supply Voltage | 24V DC ± 15% (Max. ripple 1V) |
| Vibration Resistance | 30g (in all directions) |
| Minimum Regulating Pressure | 0.05 bar |
| Minimum Ambient Temperature | 0 °C |
| ATEX Specifications Met | - |
| Mounting Position | Indifferent (recommended position: upright; electronic part on top) |
| Protection Mode | IP65 |
| Filter Efficiency Rating | 50 micron |
| Hysteresis | ≤ 100 mbar if P inlet ≤ 10 bar ≤ 200 mbar if P inlet > 10 bar |
| Materials of Construction | Silicon free |
| Minimum Pressure Differential | 0 bar |
| Maximum Ambient Temperature | +50 °C |
| Maximum Flow Rate | 150 m3/hour |
| Operational Life | > 50 Million changes of control signal steps |
| Specifications Met | EN 61000-6-1: 2001 | EN 61000-6-2: 2001 | EN 61000-6-3: 2001 | EN61000-6-4:2001 |
| Valve function | proportional pressure control |
| Working media | compressed air |
| Series | Lucifer EPP4 Comfort |
| Application | electronic pressure regulation |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.396 |
