Parker Hannifin Genuine

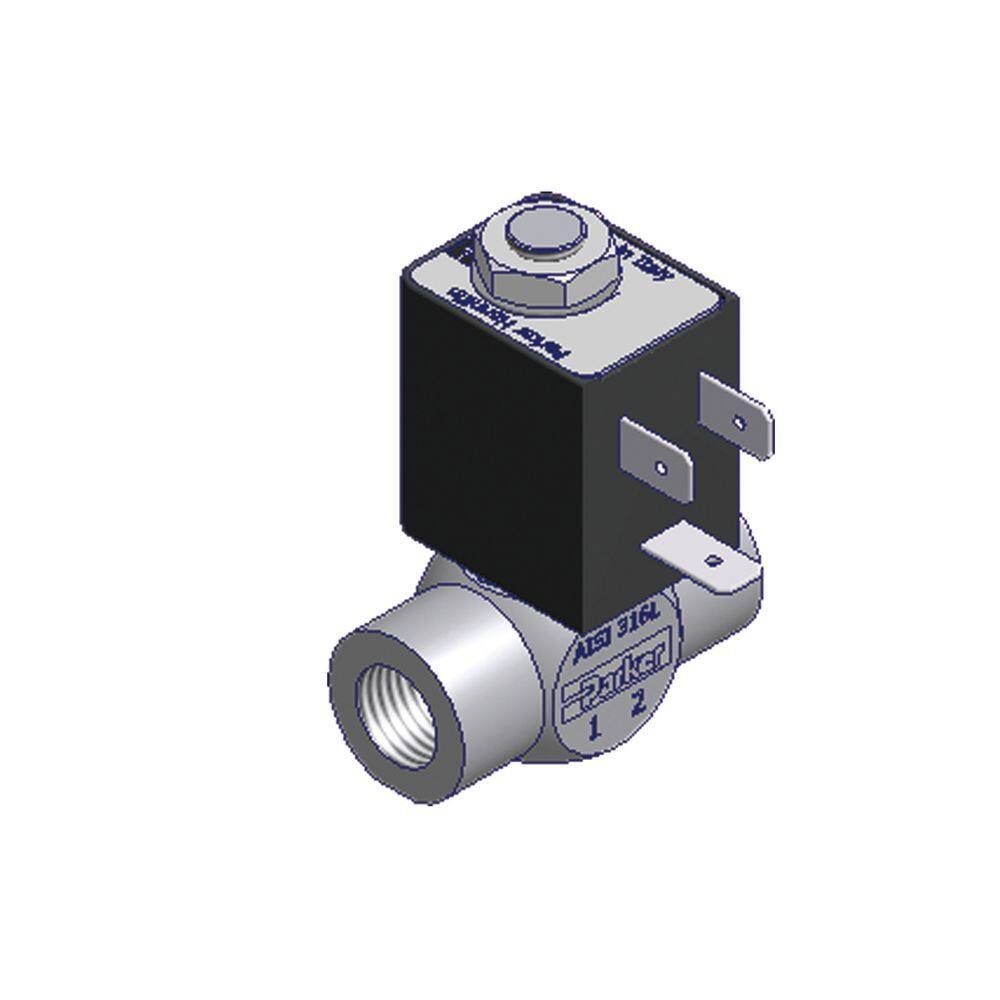

Parker Lucifer General Purpose 2/2 316L Stainless Steel Valve Direct Operated 1/8"Bsp N/C FKM Orifice 2.5mm - NO COIL - Coil Group 1.1/1.3
R2578,83Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Function
2 Way Valves 2/2 High Corrosion Resistant Valves 201Lg Series Direct Operated 316L Stainless St.
Port size
1/8" BSP
Orifice
2.5 mm
Overview
Parker Lucifer General Purpose 2/2 316L Stainless Steel Valve Direct Operated 1/8"Bsp N/C FKM Orifice 2.5mm - NO COIL - Coil Group 1.1/1.3
Specifications
| Function | 2 Way Valves 2/2 High Corrosion Resistant Valves 201Lg Series Direct Operated 316L Stainless St. |
|---|---|
| Port size | 1/8" BSP |
| Orifice | 2.5 mm |
| Kv | 2.3 l/min (0.14 m³/h) |
| Operating pressure | 0–10 bar (AC) / 0–6 bar (DC) |
| Fluid temperature | -10°C to +140°C |
| Seat seal | FKM |
| Coil group | 4 |
| Power (AC / DC) | 5 W / 1.1/1.3 W |
| Valve code | 201LG1LVG2 |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.144, 523 |
