Parker Hannifin Genuine
Parker Lucifer General Purpose 2/2 Brass Valve Direct Operated 1/4"Bsp N/C FKM Orifice 3mm - No Coil - Coil Group 2.0
R1855,24Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 45 days
Or request a confirmed lead time for this SKU →
Function
2 Way Valves 2/2 Valves For Dry Or Lubricated Air, Neutral Gases And Liquids Direct Operated Brass
Orifice
3 mm
Kv
4.5 l/min (0.27 m³/h)
Overview
Parker Lucifer General Purpose 2/2 Brass Valve Direct Operated 1/4"Bsp N/C FKM Orifice 3mm - No Coil - Coil Group 2.0
Specifications
| Function | 2 Way Valves 2/2 Valves For Dry Or Lubricated Air, Neutral Gases And Liquids Direct Operated Brass |
|---|---|
| Orifice | 3 mm |
| Kv | 4.5 l/min (0.27 m³/h) |
| Flow Qn (air) | 320 l/min |
| Operating pressure | 0–10 bar (AC) / 0–7 bar (DC) |
| Fluid temperature | -10°C to +100°C |
| Seat seal | FKM |
| Coil group | 8 |
| Power (AC / DC) | 9 W / 2.0 W |
| Valve code | E121K0302 |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.24, 62, 522 |
Documents
Catalogues Literature
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →

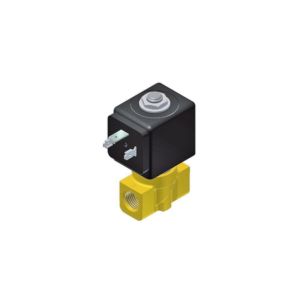

Parker Lucifer General Purpose 2/2 Brass Valve Direct Operated 1/4"Bsp N/C Ruby Orifice 1.2mm - No Coil - Coil Group 2.0
