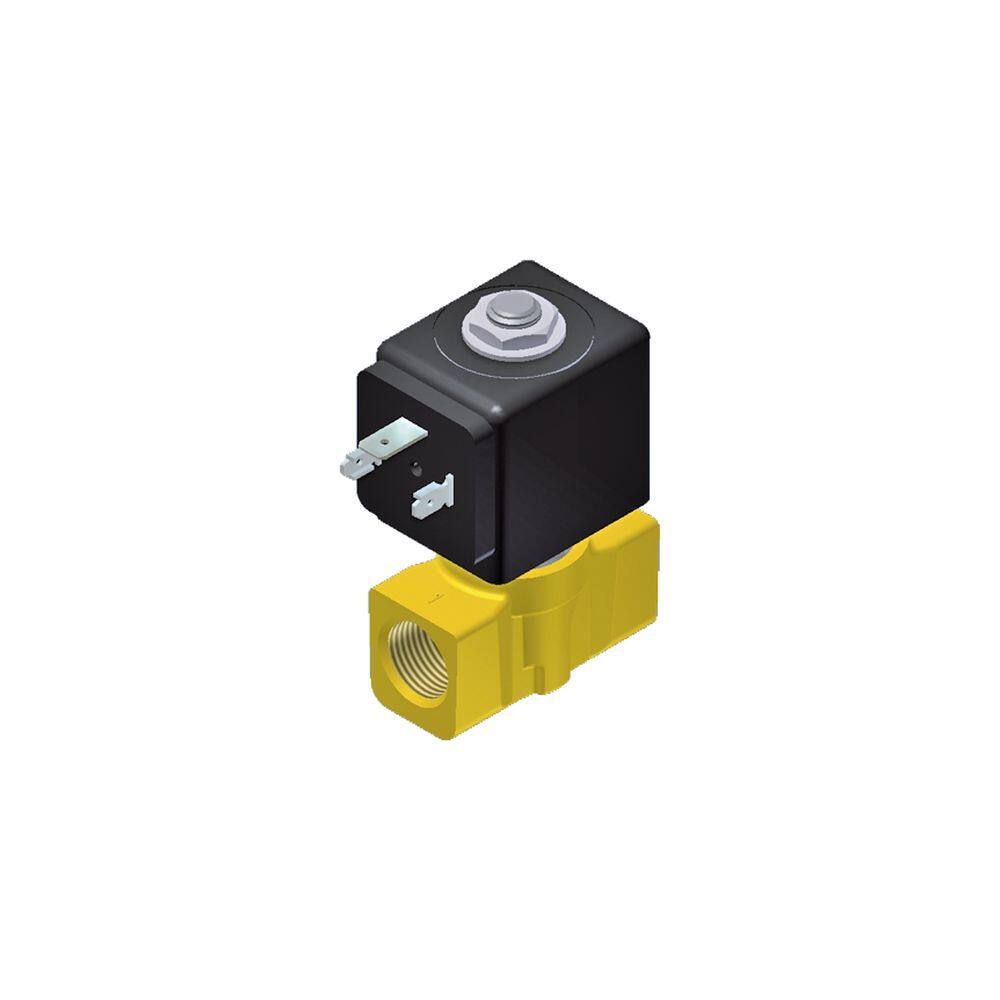

Parker Hannifin Genuine
Parker Lucifer General Purpose 2/2 Brass Valve Direct Operated 3/8"Bsp N/C EPDM Orifice 6mm - No Coil - Coil Group 2.0
R2599,61Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 45 days
Or request a confirmed lead time for this SKU →
Function
2 Way Valves 2/2 Hot Water And Steam Valves Direct Operated Brass Pipe Mounting Normally Closed
Port size
1/4" BSP
Orifice
6 mm
Overview
Parker Lucifer General Purpose 2/2 Brass Valve Direct Operated 3/8"Bsp N/C EPDM Orifice 6mm - No Coil - Coil Group 2.0
Specifications
| Function | 2 Way Valves 2/2 Hot Water And Steam Valves Direct Operated Brass Pipe Mounting Normally Closed |
|---|---|
| Port size | 1/4" BSP |
| Orifice | 6 mm |
| Kv | 12 l/min (0.72 m³/h) |
| Flow Qn (air) | 1100 l/min |
| Operating pressure | 0–5 bar (AC) / 0–1.1 bar (DC) |
| Fluid temperature | 0°C to +100°C |
| Seat seal | EPDM |
| Coil group | 8 |
| Power (AC / DC) | 9 W / 2.0 W |
| Valve code | 121K3303 |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.102, 522 |
Documents
Catalogues Literature
