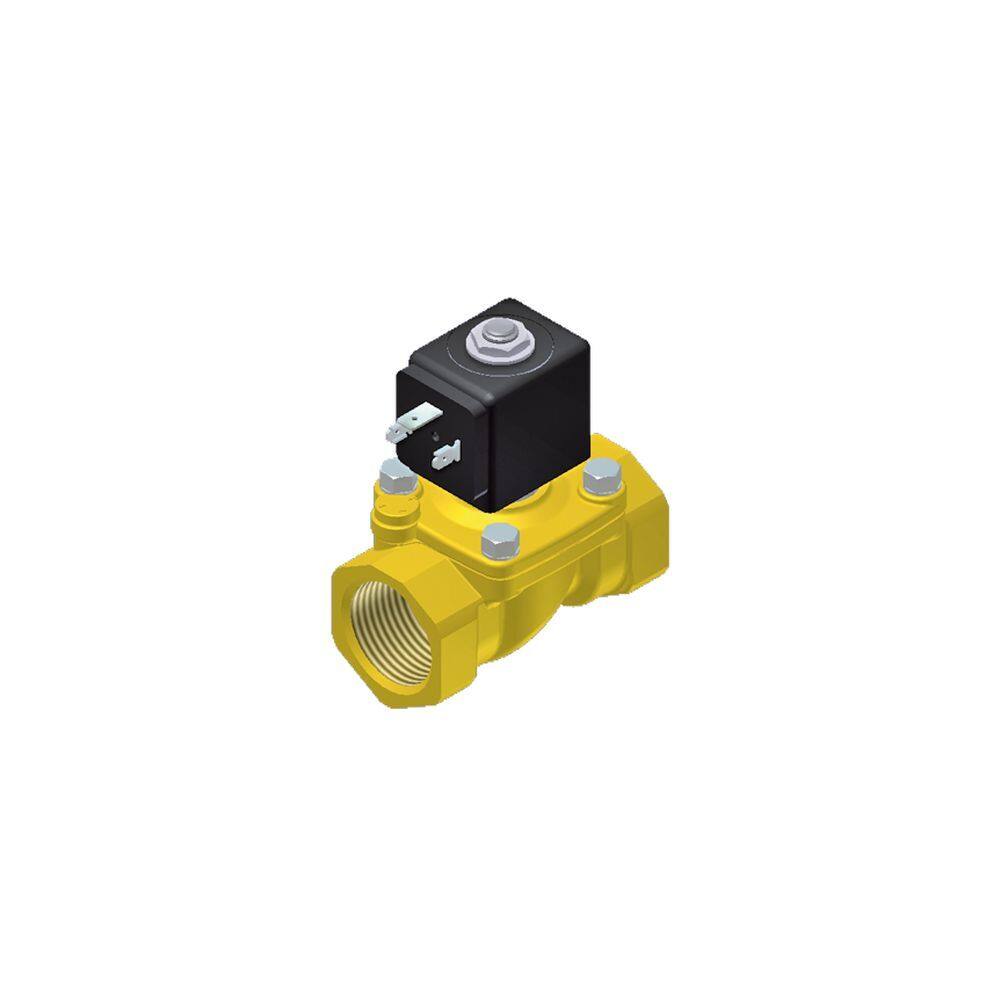

Parker Hannifin Genuine
Parker Lucifer General Purpose 2/2 Brass Valve Magnalift 1"Bsp N/C NBR Orifice 15mm - No Coil - Coil Group 2.1
R3425,21Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Function
2 Way Valves 2/2 Valves For Dry Or Lubricated Air, Neutral Gases And Liquids Magnalift Brass
Orifice
15 mm
Kv
80 l/min (4.8 m³/h)
Overview
Parker Lucifer General Purpose 2/2 Brass Valve Magnalift 1"Bsp N/C NBR Orifice 15mm - No Coil - Coil Group 2.1
Specifications
| Function | 2 Way Valves 2/2 Valves For Dry Or Lubricated Air, Neutral Gases And Liquids Magnalift Brass |
|---|---|
| Orifice | 15 mm |
| Kv | 80 l/min (4.8 m³/h) |
| Flow Qn (air) | 6000 l/min |
| Operating pressure | 0–10 bar (DC) |
| Fluid temperature | -10°C to +100°C |
| Seat seal | NBR |
| Power (AC / DC) | 9 W / 2.1 W |
| Valve code | 221G1730 |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.38, 524 |
