Parker Hannifin Genuine

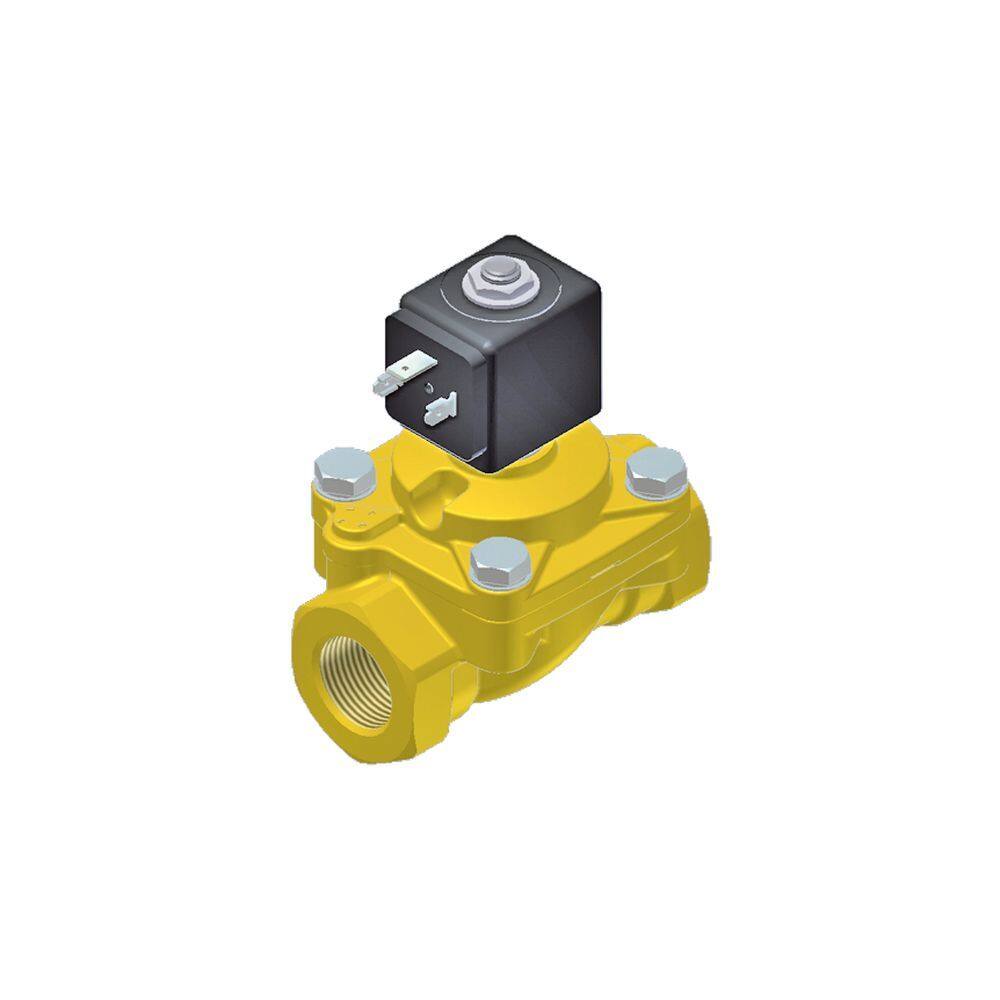

Parker Lucifer General Purpose 2/2 Brass Valve Pilot Operated 1"Bsp N/C NBR Orifice 25mm - No Coil - Coil Group 7.0/8.0
R10313,56Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 60 days
Or request a confirmed lead time for this SKU →
Function
2 Way Valves 2/2 Valves For Dry Or Lubricated Air, Neutral Gases And Liquids Pilot Operated Brass
Orifice
25 mm
Kv
185 l/min (11.1 m³/h)
Overview
Parker Lucifer General Purpose 2/2 Brass Valve Pilot Operated 1"Bsp N/C NBR Orifice 25mm - No Coil - Coil Group 7.0/8.0
Specifications
| Function | 2 Way Valves 2/2 Valves For Dry Or Lubricated Air, Neutral Gases And Liquids Pilot Operated Brass |
|---|---|
| Orifice | 25 mm |
| Kv | 185 l/min (11.1 m³/h) |
| Flow Qn (air) | 14100 l/min |
| Operating pressure | 0.3–10 bar (DC) |
| Fluid temperature | -10°C to +55°C |
| Seat seal | NBR |
| Valve code | 321G3790 |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.48, 524 |
Documents
Catalogues Literature
