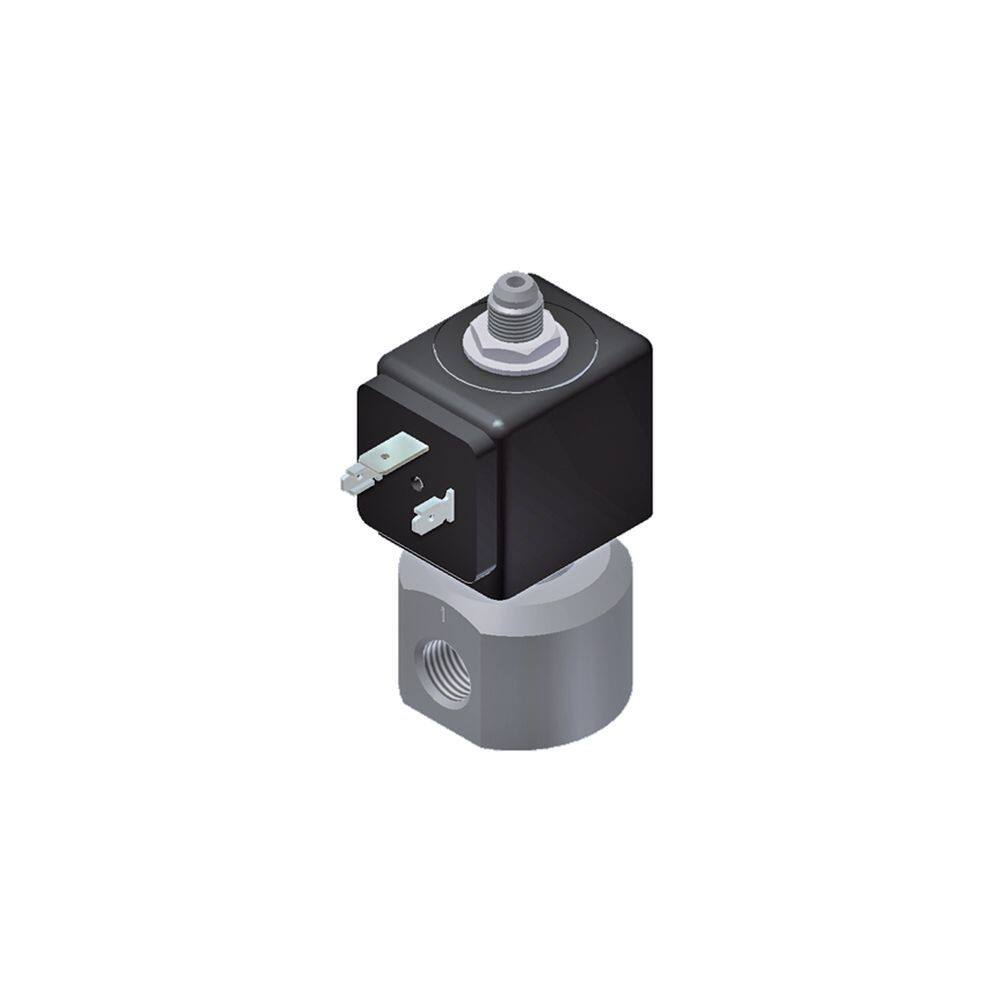

Parker Lucifer General Purpose 3/2 303 Stainless Steel Valve Direct Operated 1/4"Bsp Universal Ruby Orifice 2.5mm - No Coil - Coil Group 2.0
Overview
The V Series direct operated solenoid valves includes many options to fullfill the demand of the most challenging applications in Industrial and Process markets. The solid and robust design includes 303 and 316L bodies and a stainless steel operator rated for million of life cycles. This product solution can optimize the total ownership costs in a broad range of heavy duty and high demanding applications.
Markets:
- Industrial
- Process
Applications:
- Compressors
- Air Treatment
- Fluid & gas control/handling
- Actuators control
- Water and steam control
Features/Benefits:
- High Corrosion Resistant
- Coil modularity
- Multiapproved coil including Atex
Specifications
| Orifice | 2.5 |
|---|---|
| Pressure | 0–4 bar |
| Material | 303 Stainless St. |
| Function | 3/2 |
| Seals | RUBY |
| Size / port thread | 1/8"–1/4" |
| Temperature Range | -40°C to +180°C |
| Working media | air, neutral gases, water, oils and aggressive fluids depending on body and seal; brass, aluminium, 316L and other stainless bodies |
| Application | 3/2 solenoid valves — diverting and venting duty, direct or servo operated |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.216, 523 |
Documents
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
Parker Lucifer General Purpose 3/2 303 Stainless Steel Valve Direct Operated 1/4"Bsp N/C FKM Orifice 2.5mm - No Coil - Coil Group 2.1

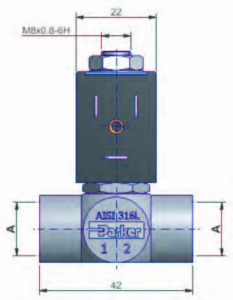

Parker Lucifer General Purpose 3/2 316L Stainless Steel Valve Direct Operated 1/8"Bsp N/C FKM Orifice 1.5mm - NO COIL - Coil Group 1.1/1.3
