Parker Hannifin Genuine

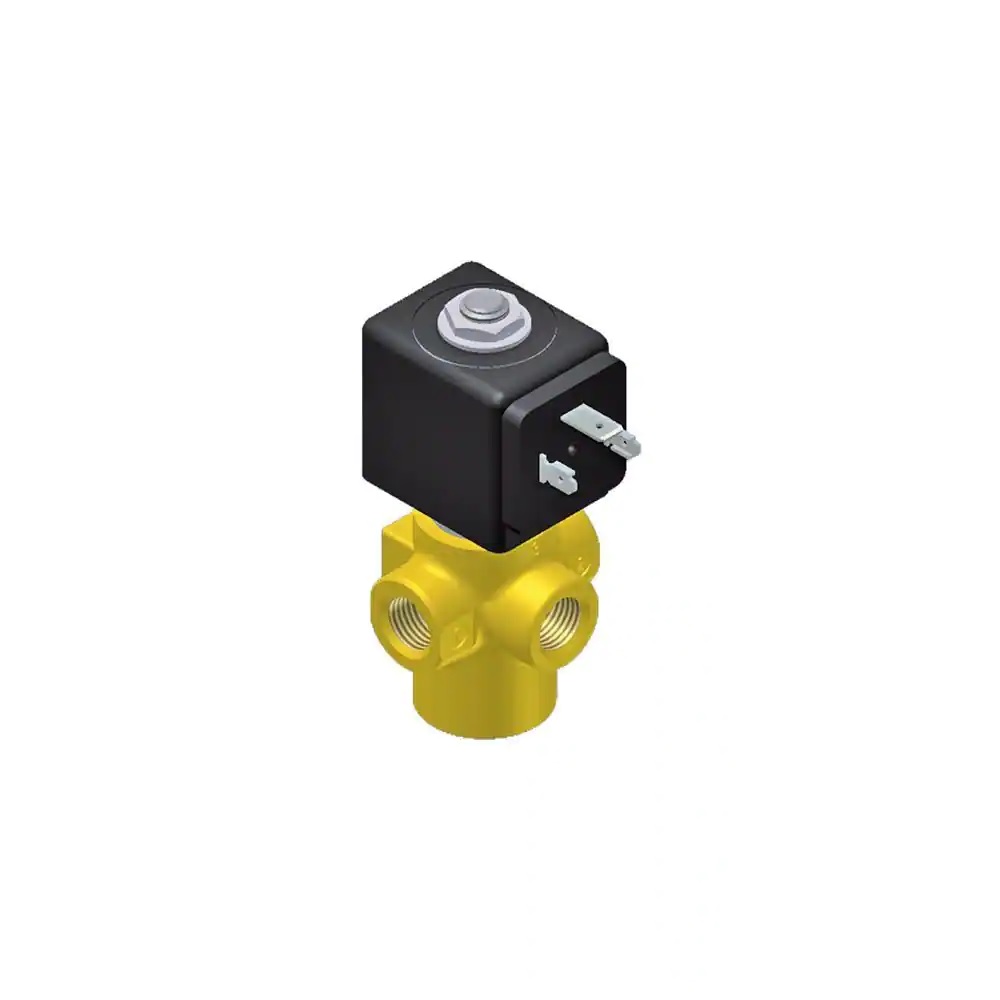

Parker Lucifer General Purpose 3/2 Brass Valve Direct Operated 1/4"Bsp N/C FKM Orifice 2mm - 3mm - No Coil - Coil Group 2.0
R3281,63
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
up to 40 bar differential, AC and DC alike. Range STAMP — Parker Solenoid Valves for Fluid Control, General Catalogue 0112UK
Size / port thread
orifice 0.8 to 30 mm; ports 1/8" to 1/4" and sub-base
Temperature Range
fluid -40°C to +180°C, set by the seat seal — NBR, FKM (including FDA grades), PUR or ruby
Overview
Parker Lucifer General Purpose 3/2 Brass Valve Direct Operated 1/4"Bsp N/C FKM Orifice 2mm - 3mm - No Coil - Coil Group 2.0
Specifications
| Size / port thread | orifice 0.8 to 30 mm; ports 1/8" to 1/4" and sub-base |
|---|---|
| Temperature Range | fluid -40°C to +180°C, set by the seat seal — NBR, FKM (including FDA grades), PUR or ruby |
| Application | 3/2 solenoid valves — diverting and venting duty, direct or servo operated |
| Working media | air, neutral gases, water, oils and aggressive fluids depending on body and seal; brass, aluminium, 316L and other stainless bodies |
| Maximum Operating Pressure | up to 40 bar differential, AC and DC alike. Range STAMP — Parker Solenoid Valves for Fluid Control, General Catalogue 0112UK |
| Catalogue reference | AGC category: General Purpose 3/2 Brass Valve - Direct Operated |
