Parker Hannifin Genuine

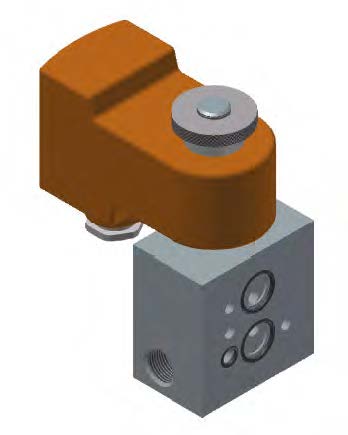

Parker Lucifer General Purpose 3/2 N/C Anodized Aluminium Namur Valve Direct Operated 1/4"Bsp NBR Orifice 6mm - No Coil - Coil Group 10.1/10.2
R13094,39Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
12 bar DC
Body Material
Anodized Aluminium
Function
Normally closed
Overview
Parker Lucifer General Purpose 3/2 N/C Anodized Aluminium Namur Valve Direct Operated 1/4"Bsp NBR Orifice 6mm - No Coil - Coil Group 10.1/10.2
Specifications
| Function | Normally closed |
|---|---|
| Maximum Operating Pressure | 12 bar DC |
| Body Material | Anodized Aluminium |
| Seal Material | NBR |
| Valve Type | 3/2-Way |
| Actuation Type | Direct operated |
| Insulation Class | - |
| Maximum Fluid Temperature | 65 °C |
| Minimum Fluid Temperature | -25 °C |
| Port Size | G 1/4 |
| Power Supply Voltage | - |
| Flow Coefficient 1 | 680 L/min |
| Media | Air |
| Port Type | Namur |
| Coil Specifications Met | n/a |
| Minimum Operating Pressure | 0 bar |
| Electrical Connection | n/a |
| Specifications Met | - |
| Coil Temperature Range | n/a |
| ATEX Specifications Met | n/a |
| Coil Power Consumption | n/a |
