Parker Hannifin Genuine

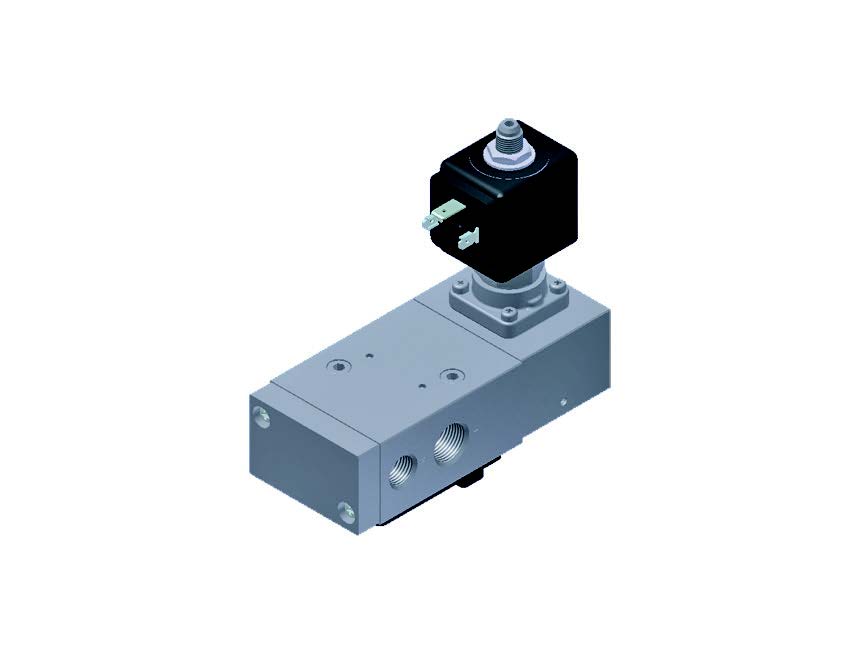

Parker Lucifer General Purpose 3/2 or 5/2 N/C 316L Stainless Steel Namur Valve Pilot Operated 1/4"Npt - 3/8"Npt NBR Orifice 8mm - No Coil - Coil Group 7.0
R27561,40Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar DC
Body Material
316L stainless steel
Function
SPRING RETURN
Overview
Parker Lucifer General Purpose 3/2 or 5/2 N/C 316L Stainless Steel Namur Valve Pilot Operated 1/4"Npt - 3/8"Npt NBR Orifice 8mm - No Coil - Coil Group 7.0
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 10 bar DC |
| Body Material | 316L stainless steel |
| Seal Material | NBR |
| Valve Type | 3/2-5/2 Way |
| ATEX Specifications Met | - |
| Coil Temperature Range | - |
| Flow Coefficient 1 | 1400 l/min |
| Insulation Class | - |
| Maximum Fluid Temperature | +65°C |
| Minimum Operating Pressure | 2 bar DC |
| Orifice Size | 8 mm |
| Port Size | 3/8 NPT - 1/4 NPT |
| Power Supply Voltage | - |
| Specifications Met | Intrinsically safe - Perpendicular operator - pilot seat in FKM |
| Coil Specifications Met | - |
| Port Type | Namur |
| Media | Air |
| Electrical Connection | - |
| Coil Power Consumption | - |
