Parker Hannifin Genuine

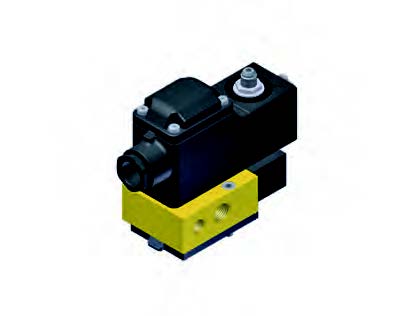

Parker Lucifer General Purpose 3/2 or 5/2 Single Solenoid / Spring Return Anodized Aluminium Namur Valve Pilot Operated 1/8"Bsp - 1/4"Bsp NBR/PUR Orifice 4mm c/w Manual Override - No Coil - Coil Group
R4641,89Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 40 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Body Material
Anodized aluminium
Function
SPRING RETURN
Overview
Parker Lucifer General Purpose 3/2 or 5/2 Single Solenoid / Spring Return Anodized Aluminium Namur Valve Pilot Operated 1/8"Bsp - 1/4"Bsp NBR/PUR Orifice 4mm c/w Manual Override - No Coil - Coil Group
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | Anodized aluminium |
| Seal Material | NBR |
| Valve Type | 3/2-5/2 Way |
| Actuation Type | PILOT OPERATED |
| Coil Power Consumption | - |
| Coil Temperature Range | - |
| Electrical Connection | - |
| Flow Coefficient | 355 l/min |
| Port Type | Namur |
| Coil Specifications Met | - |
| Maximum Fluid Temperature | 75 °C |
| Media | Air |
| ATEX Specifications Met | - |
| Minimum Operating Pressure | 1 bar (AC or DC) |
| Power Supply Voltage | - |
| Orifice Size | 4 mm |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.332, 525 |
