Parker Hannifin Genuine

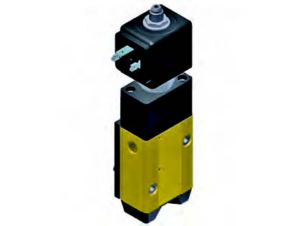

Parker Lucifer General Purpose 3/2 or 5/2 Solenoid / Spring Return Anodized Aluminium Namur Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm c/w Manual Override & Captured Exhaust - No Coil - Coil Group 1
R3619,63Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar
Body Material
Anodized Aluminium
Function
SPRING RETURN
Overview
Parker Lucifer General Purpose 3/2 or 5/2 Solenoid / Spring Return Anodized Aluminium Namur Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm c/w Manual Override & Captured Exhaust - No Coil - Coil Group 1
Specifications
| Function | SPRING RETURN |
|---|---|
| Maximum Operating Pressure | 10 bar |
| Body Material | Anodized Aluminium |
| Seal Material | NBR |
| Valve Type | 3/2-5/2 Way |
| ATEX Specifications Met | - |
| Flow Coefficient 1 | 1400 l/min |
| Insulation Class | - |
| Maximum Fluid Temperature | +80°C |
| Minimum Operating Pressure | 2 bar |
| Orifice Size | 8 mm |
| Port Size | G 1/4 |
| Power Supply Voltage | - |
| Specifications Met | With captured exhaust - Manual override - In line operator |
| Minimum Fluid Temperature | -25 °C |
| Media | Air |
| Actuation Type | Pilot Operated |
| Electrical Connection | - |
| Port Type | Namur |
| Coil Power Consumption | - |
| Coil Specifications Met | - |
Documents
Demos & Tutorials
Catalogues & Literature
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
