Parker Hannifin Genuine

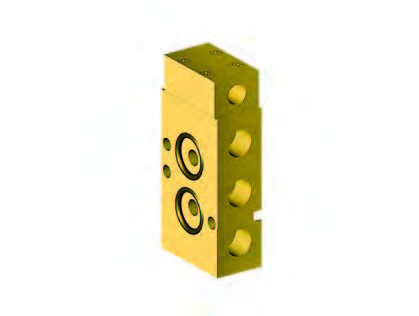

Parker Lucifer General Purpose 5/2 Air Operated / Spring Return Anodized Aluminium Namur Valve Externally Operated 1/4"Bsp NBR Orifice 7mm
R1 289,93Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 40 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Body Material
Anodized Aluminum
Function
Spring return
Overview
Parker Lucifer General Purpose 5/2 Air Operated / Spring Return Anodized Aluminium Namur Valve Externally Operated 1/4"Bsp NBR Orifice 7mm
Specifications
| Function | Spring return |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | Anodized Aluminum |
| Seal Material | NBR |
| Valve Type | 5/2 Way |
| Actuation Type | Air operated |
| Coil Temperature Range | - |
| Flow Coefficient 1 | 1250 l/min |
| Insulation Class | - |
| Maximum Fluid Temperature | 50 °C |
| Port Size | 1/4" G |
| Power Supply Voltage | - |
| Coil Specifications Met | n/a |
| Port Type | Namur |
| Orifice Size | 7 mm |
| Electrical Connection | n/a |
| Coil Power Consumption | n/a |
| Specifications Met | - |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.338 |
