Parker Hannifin Genuine

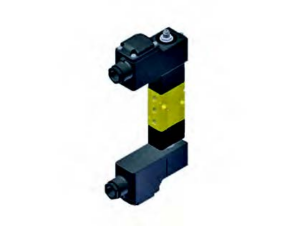

Parker Lucifer General Purpose 5/2 Dual Solenoid Anodized Aluminium Namur Valve Pilot Operated 1/4"Bsp NBR Orifice 7mm c/w Manual Override - No Coil - Coil Group 2.1
R2360,86Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Body Material
Anodized Aluminum
Function
Dual Solenoids
Overview
Parker Lucifer General Purpose 5/2 Dual Solenoid Anodized Aluminium Namur Valve Pilot Operated 1/4"Bsp NBR Orifice 7mm c/w Manual Override - No Coil - Coil Group 2.1
Specifications
| Function | Dual Solenoids |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | Anodized Aluminum |
| Seal Material | NBR |
| Valve Type | 5/2 Way |
| Actuation Type | Solenoid Operated |
| Coil Temperature Range | - |
| Flow Coefficient 1 | 1250 l/min |
| Insulation Class | - |
| Maximum Fluid Temperature | 50 °C |
| Port Size | 1/4" G |
| Power Supply Voltage | - |
| Media | Dry or Lubricated Air |
| Orifice Size | 7 mm |
| Minimum Operating Pressure | 1.5 bar |
| Electrical Connection | n/a |
| Minimum Fluid Temperature | -20 °C |
| Coil Specifications Met | n/a |
| Coil Power Consumption | n/a |
| Port Type | Namur |
| ATEX Specifications Met | n/a |
| Specifications Met | Manual Override - Perpendicular Operator |
