Parker Hannifin Genuine

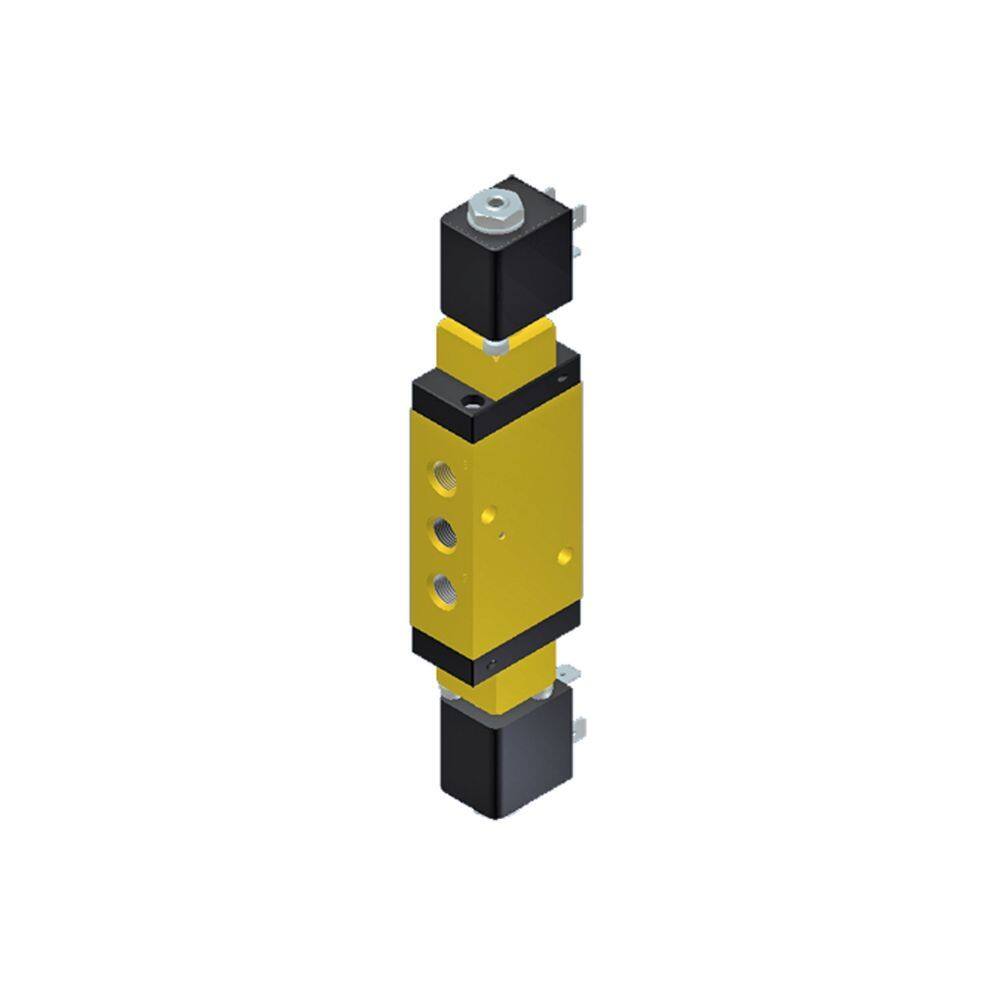

Parker Lucifer General Purpose 5/2 Dual Solenoid Anodized Aluminium Valve Pilot Operated 1/8"Bsp NBR Orifice 4mm c/w Manual Override - No Coil - Coil Group 1.1
R10779,04Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 45 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Body Material
Anodized aluminium
Function
DUAL SOLENOID
Overview
Parker Lucifer General Purpose 5/2 Dual Solenoid Anodized Aluminium Valve Pilot Operated 1/8"Bsp NBR Orifice 4mm c/w Manual Override - No Coil - Coil Group 1.1
Specifications
| Function | DUAL SOLENOID |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | Anodized aluminium |
| Seal Material | NBR |
| Valve Type | 5/2 way |
| Actuation Type | PILOT OPERATED |
| Coil Power Consumption | - |
| Coil Temperature Range | - |
| Electrical Connection | - |
| Flow Coefficient | 315 l/min |
| Port Type | Pipe mounting |
| Orifice Size | 4 mm |
| Minimum Fluid Temperature | -10 °C |
| Power Supply Voltage | - |
| Maximum Fluid Temperature | 75 °C |
| ATEX Specifications Met | - |
| Coil Specifications Met | - |
| Minimum Operating Pressure | 2 bar (AC or DC) |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.250, 525 |
