Parker Hannifin Genuine

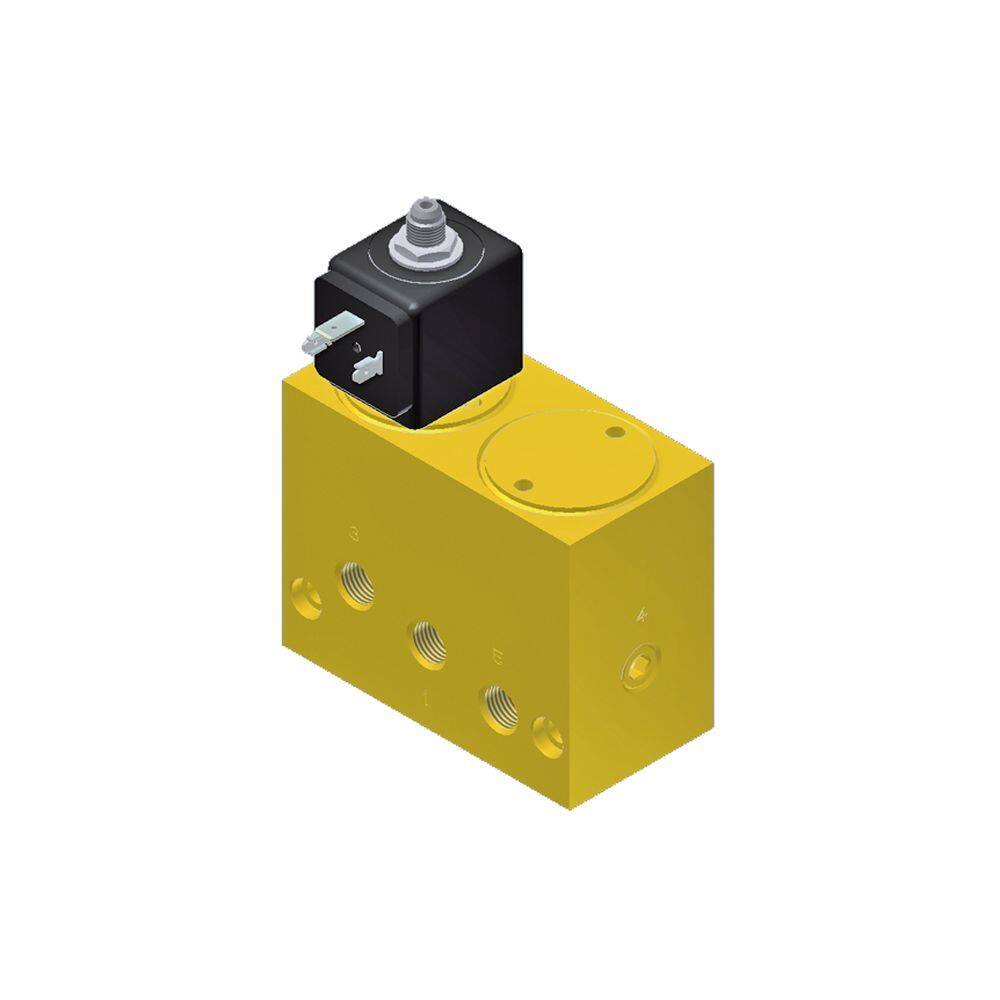

Parker Lucifer General Purpose 5/2 Single Solenoid / Electric Impulse Anodized Aluminium Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm - No Coil - Coil Group 4.0
R14973,74Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
15 bar AC/DC
Body Material
Anodized aluminium
Function
CONTROL BY ELECTRIC IMPULSE
Overview
Parker Lucifer General Purpose 5/2 Single Solenoid / Electric Impulse Anodized Aluminium Valve Pilot Operated 1/4"Bsp NBR Orifice 8mm - No Coil - Coil Group 4.0
Specifications
| Function | CONTROL BY ELECTRIC IMPULSE |
|---|---|
| Maximum Operating Pressure | 15 bar AC/DC |
| Body Material | Anodized aluminium |
| Seal Material | NBR |
| Valve Type | 5/2 way |
| ATEX Specifications Met | - |
| Flow Coefficient | 16 l/min |
| Maximum Fluid Temperature | +75°C |
| Orifice Size | 8 mm |
| Port Size | G 1/4 |
| Port Type | PIPE MOUNTING |
| Specifications Met | Pilot seat in FKM. |
| Coil Specifications Met | - |
| Coil Temperature Range | - |
| Media | Oil, air, Neutral Gases |
| Minimum Operating Pressure | 1 bar (AC or DC) |
| Insulation Class | n/a |
