Parker Hannifin Genuine

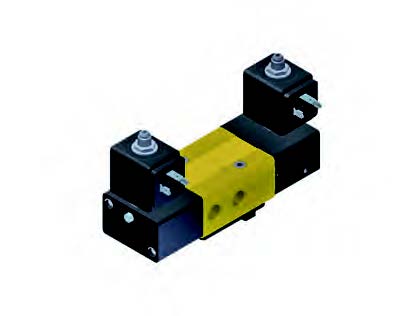

Parker Lucifer General Purpose 5/3 Closed Centre Anodized Aluminium Namur Valve Pilot Operated 1/4"Bsp NBR Orifice 7mm c/w Manual Override - No Coil - Coil Group 2.1
R3 491,11Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 50 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Body Material
Anodized Aluminium
Function
W1 CLOSED CENTER POSITION
Overview
Parker Lucifer General Purpose 5/3 Closed Centre Anodized Aluminium Namur Valve Pilot Operated 1/4"Bsp NBR Orifice 7mm c/w Manual Override - No Coil - Coil Group 2.1
Specifications
| Function | W1 CLOSED CENTER POSITION |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Body Material | Anodized Aluminium |
| Valve Type | 5/3 Way |
| ATEX Specifications Met | - |
| Coil Temperature Range | - |
| Flow Coefficient 1 | 1250 l/min |
| Insulation Class | - |
| Maximum Fluid Temperature | +50°C |
| Minimum Operating Pressure | 2.5 bar AC/DC |
| Orifice Size | 7 mm |
| Port Size | G 1/4 |
| Power Supply Voltage | - |
| Specifications Met | With manual override - Perpendicular operators |
| Minimum Fluid Temperature | -20 °C |
| Port Type | Namur |
| Coil Power Consumption | - |
| Actuation Type | Pilot Operated |
| Media | Air |
| Catalogue reference | Parker Lucifer Solenoid Valves General Catalogue 0112UK, p.326, 525 |
