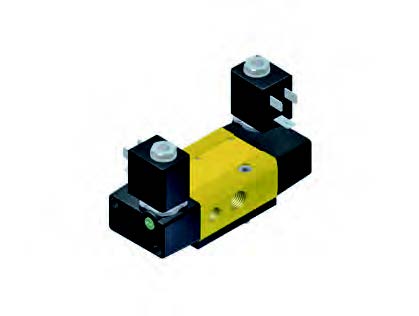

Parker Lucifer General Purpose 5/3 Closed Centre Anodized Aluminium Namur Valve Pilot Operated 1/8"Bsp - 1/4"Bsp NBR Orifice 4mm c/w Manual Override & Captured Exhaust - No Coil - Coil Group 1.1
R7170,83Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar AC/DC
Function
W1 CLOSED CENTER POSITION
Seal Material
NBR
Overview
Parker Lucifer General Purpose 5/3 Closed Centre Anodized Aluminium Namur Valve Pilot Operated 1/8"Bsp - 1/4"Bsp NBR Orifice 4mm c/w Manual Override & Captured Exhaust - No Coil - Coil Group 1.1
Specifications
| Function | W1 CLOSED CENTER POSITION |
|---|---|
| Maximum Operating Pressure | 10 bar AC/DC |
| Seal Material | NBR |
| Valve Type | 3/2-5/2 Way |
| ATEX Specifications Met | - |
| Coil Temperature Range | - |
| Flow Coefficient 1 | 400 l/min |
| Insulation Class | - |
| Maximum Fluid Temperature | +80°C |
| Minimum Operating Pressure | 2 bar AC/DC |
| Orifice Size | 4 mm |
| Port Size | G 1/8 - G 1/4 |
| Power Supply Voltage | - |
| Specifications Met | With captured exhaust - Manual override - Perpendicular operator |
| Coil Power Consumption | - |
| Actuation Type | Pilot Operated |
| Media | Air |
| Electrical Connection | - |
| Coil Specifications Met | - |
| Port Type | Namur |
