Parker Hannifin Genuine

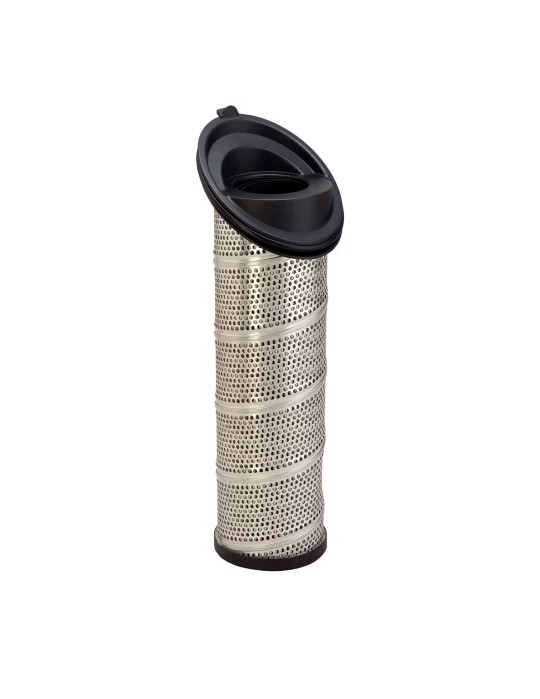

Parker Moduflow Plus Low-Pressure Filter Element Single Length - 74µm
R25076,39Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 110 days
Or request a confirmed lead time for this SKU →
Size / port thread
3/8"–3"
Temperature Range
-40°C to +120°C
Media
Compressed air
Overview
Parker Moduflow Plus Low-Pressure Filter Element Single Length - 74µm
Specifications
| Size / port thread | 3/8"–3" |
|---|---|
| Temperature Range | -40°C to +120°C |
| Media | Compressed air |
| Media (detail) | hydraulic and lubrication oil, compressed air and gas |
| Application (detail) | hydraulic pressure and return filtration, reservoir suction strainers, and compressed air and gas purification |
| Pressure (detail) | 69 bar on the CN hydraulic range, 40 bar on 45M, 16 or 20 bar on OIL-X PX compressed air depending on drain type. A suction element has no pressure rating at all — it hangs inside the reservoir. Source: Parker Catalog 2300-18, FDHB500UK/45M, FDHB500UK/Reservoir and the Parker compressed air and gas filtration catalogue |
| Size (detail) | 3/8" to 3" ports on compressed air; 3/4" to 2" NPT and SAE on hydraulic; G1/2" to G3" on reservoir suction |
| Temperature (detail) | -40°C to +120°C across the range, set by the seal — nitrile -40 to +107°C, fluorocarbon -26 to +107°C on the CN range; +2 to +80°C on compressed air, set by the drain type |
| Catalogue reference (detail) | AGC category: Filters, Collectors, Separators and Purifiers |
