Parker Hannifin Genuine

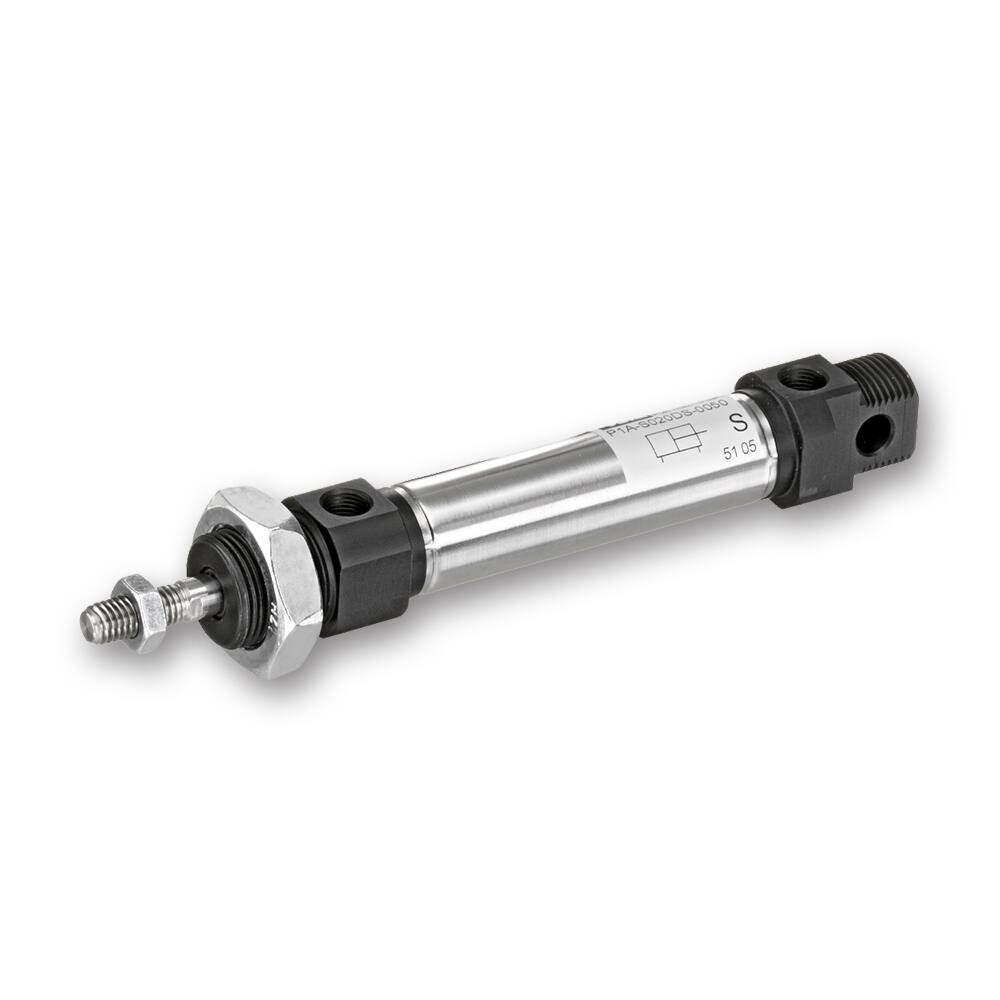

Parker P1A Series ISO 6432 20mm Bore x 200mm Stroke Mini Round Cylinder STD Temp c/w Magnet Adj Cushion
R1507,77
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar max
Size / port thread
ISO 6432 mini cylinder
Stroke
200 mm
Overview
Parker P1A Series ISO 6432 20mm Bore x 200mm Stroke Mini Round Cylinder STD Temp c/w Magnet Adj Cushion
Specifications
| Maximum Operating Pressure | 10 bar max |
|---|---|
| Bore | 20 mm |
| Stroke | 200 mm |
| Size / port thread | ISO 6432 mini cylinder |
| Temperature Range | -20°C to +80°C |
| Media | dry, filtered compressed air |
| Application | P1A mini ISO round cylinder — double/single acting, fixed or adjustable cushioning |
| Catalogue reference | PDE2564TCUK |
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →

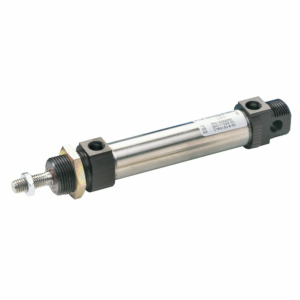

Parker P1A Series ISO 6432 20mm Bore x 50mm Stroke Mini Round Cylinder Single-Acting STD Temp c/w Magnet Non-Adj Cushion
