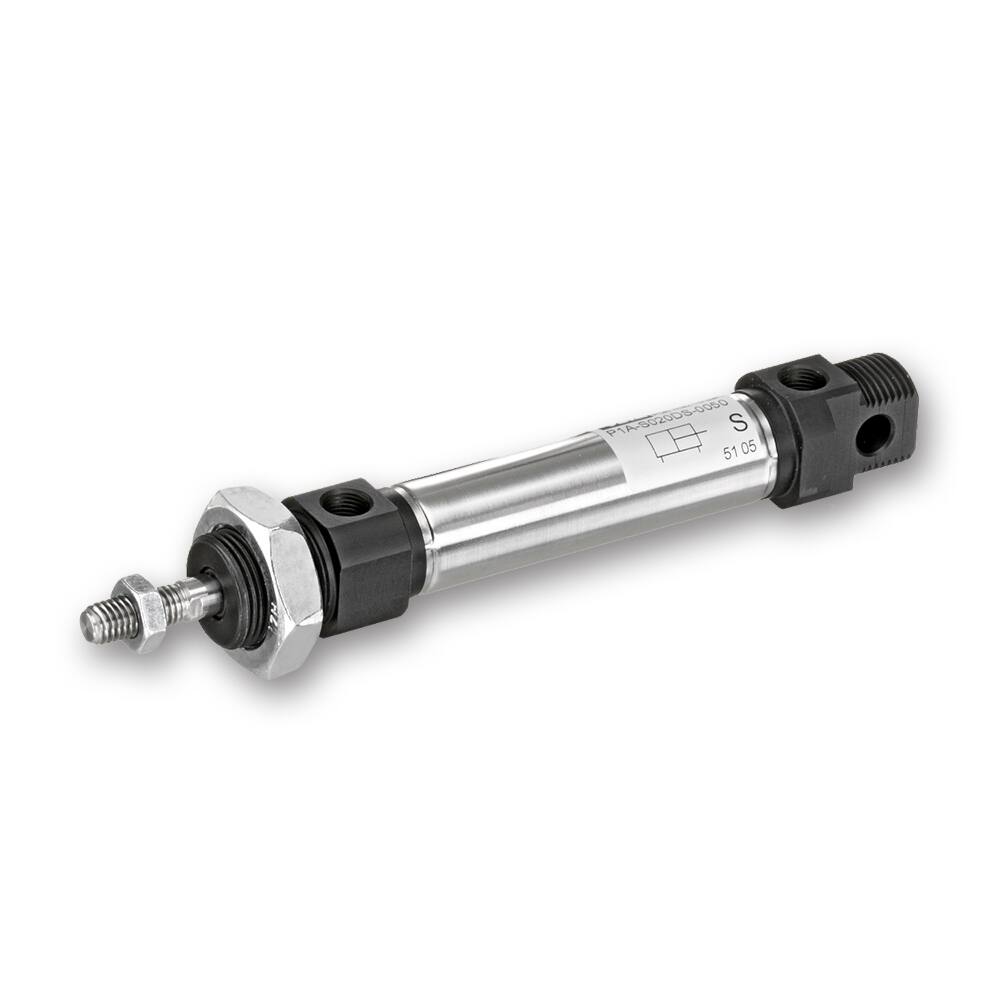

Parker P1A Series ISO 6432 25mm Bore x 170mm Stroke Mini Round Cylinder STD Temp c/w Magnet Non-Adj Cushion
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar
Stroke
170 mm
Bore
25 mm
Overview
Parker P1A Series ISO 6432 25mm Bore x 170mm Stroke Mini Round Cylinder STD Temp c/w Magnet Non-Adj Cushion
Specifications
| Standard | ISO 6432 mini round cylinder |
|---|---|
| Bore | 25 mm |
| Stroke | 170 mm |
| Action | Double acting, fixed (non-adjustable) cushioning |
| Maximum Operating Pressure | 10 bar |
| Working media | Dry, filtered compressed air (ISO 8573-1 class 3.4.3) |
| Seals | Standard NBR |
| Temperature Range | -20°C to +80°C |
| Piston | Magnetic piston |
| Piston rod diameter | 10 mm |
| Piston rod thread | M10x1.25 |
| Port thread | G1/8 |
| Theoretical force at 6 bar (out) | 295 N |
| Theoretical force at 6 bar (return) | 247 N |
| Catalogue reference | PDE2564, p.6, 13, 14, 15 |
