Parker Hannifin Genuine

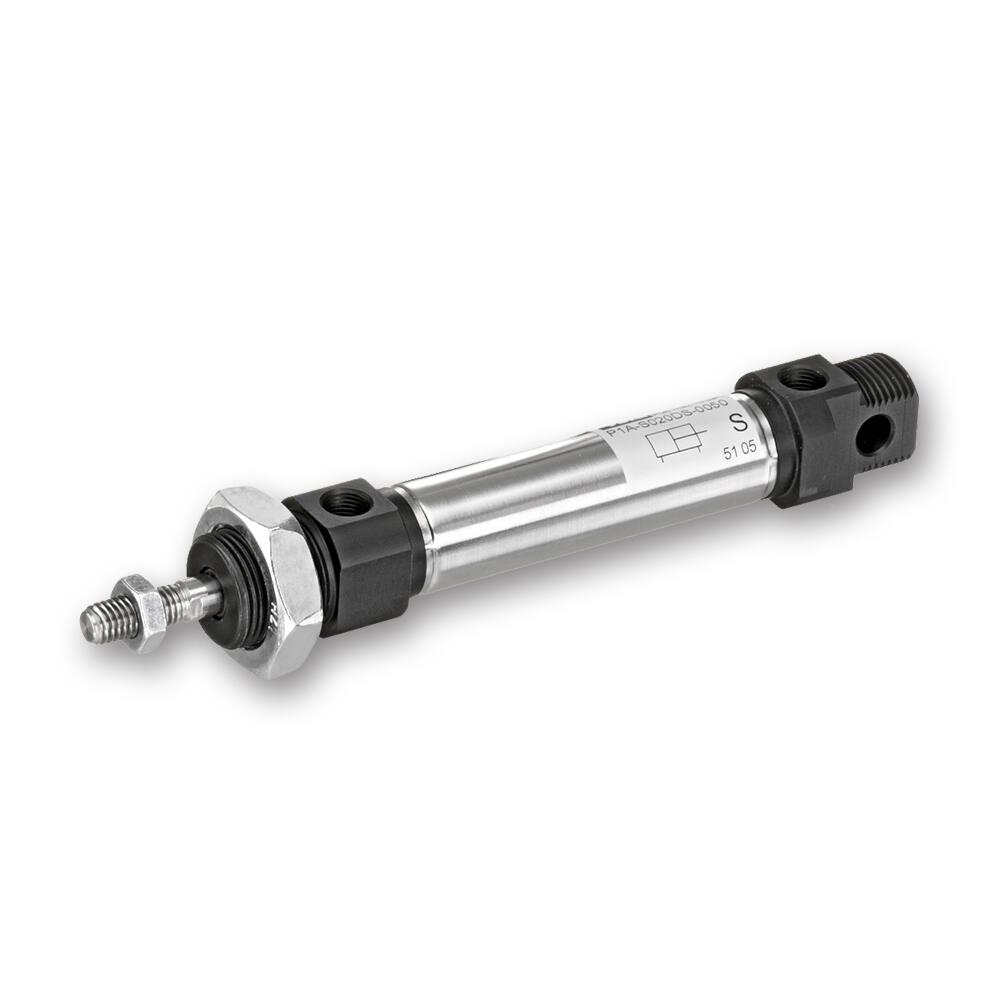

Parker P1A Series ISO 6432 25mm Bore x 38mm Stroke Mini Round Cylinder STD Temp c/w Magnet Adj Cushion Single- Acting Spring Extended
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10 bar
Stroke
38 mm
Bore
25 mm
Overview
Parker P1A Series ISO 6432 25mm Bore x 38mm Stroke Mini Round Cylinder STD Temp c/w Magnet Adj Cushion Single- Acting Spring Extended
Specifications
| Standard | ISO 6432 mini round cylinder |
|---|---|
| Bore | 25 mm |
| Stroke | 38 mm |
| Action | Single acting, spring extended (advance) |
| Maximum Operating Pressure | 10 bar |
| Working media | Dry, filtered compressed air (ISO 8573-1 class 3.4.3) |
| Seals | Standard NBR |
| Temperature Range | -20°C to +80°C |
| Piston | Magnetic piston |
| Piston rod diameter | 10 mm |
| Piston rod thread | M10x1.25 |
| Port thread | G1/8 |
| Catalogue reference | PDE2564, p.6, 13, 14, 15 |
