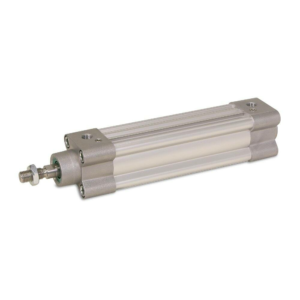

Parker P1F Series ISO 15552 50mm Bore x 80mm Stroke Smooth Profile Twin Rod Cylinder STD Temp c/w Magnet
Parker P1F ISO 15552 smooth profile cylinder, Ø50 mm × 80 mm stroke, magnetic piston, double acting, cushioned, 10 bar.
Overview
Parker P1F ISO 15552 Cylinders are double-acting pneumatic actuators with magnetic piston, available in bores from 32 to 125 mm and strokes from 1 to 2500 mm. Featuring a stainless steel piston rod and adjustable cushioning, the range complies with ISO 15552 mounting interfaces and accepts the full Parker mounting accessory range (flanges, foot brackets, pivot brackets, swivel and clevis brackets, 3/4-position flanges). All variants are compatible with Parker P8S magnetic sensors for position feedback.
Markets:
- Industrial automation
- Manufacturing
- Packaging
- Process control
Applications:
- Linear motion in machine actuation
- Material handling and clamping
- Process line positioning
Features/Benefits:
- ISO 15552 mounting interface
- Stainless steel piston rod
- Adjustable end-of-stroke cushioning
- Optional magnetic sensors
- Wide bore (32–125 mm) and stroke (1–2500 mm) range
- 10 bar working pressure, -20 °C to +80 °C
- Wide range of ISO mountings available
Specifications
| Series | Parker P1F |
|---|---|
| Standard | ISO 15552 (VDMA 24562) |
| Cylinder design | Smooth profile twin rod |
| Bore | 50 mm |
| Stroke | 80 mm |
| Action | Double acting, adjustable pneumatic cushioning both ends |
| Piston | Aluminium, with magnet for sensors |
| Piston rod | Stainless steel |
| Piston rod diameter | 20 mm |
| Theoretical force at 6 bar (out) | 1 180 N |
| Theoretical force at 6 bar (return) | 990 N |
| Port thread | G 1/4 |
| Maximum Operating Pressure | 10 bar |
| Temperature Range | -20 °C to +80 °C (standard seals) |
| Working media | Filtered compressed air, lubricated or non-lubricated |
| Catalogue reference | PDE3570TCEN, p.4, 6, 7, 8, 9, 12, 13, 16, 17, 18 |
